ER Stress-induced Autophagy Antibody Sampler Kit (HAK21029)
Catalog# HAK21029
Reacts with
-
Human

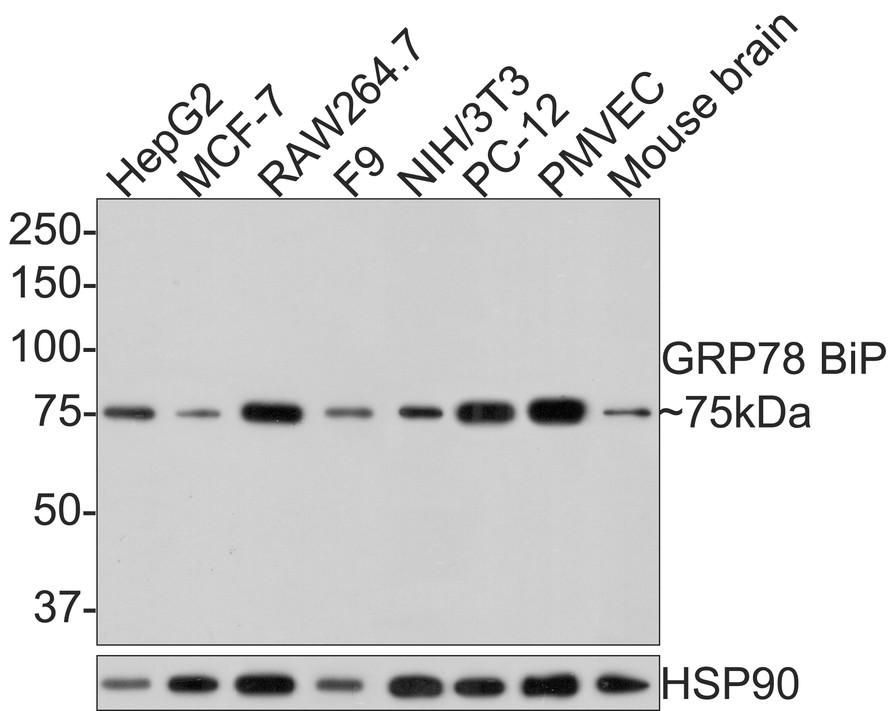

Western blot analysis of GRP78 BiP on different lysates with Mouse anti-GRP78 BiP antibody (HA601076) at 1/1,000 dilution.
Lane 1: HepG2 cell lysate (10 µg/Lane)
Lane 2: MCF-7 cell lysate (10 µg/Lane)
Lane 3: RAW264.7 cell lysate (10 µg/Lane)
Lane 4: F9 cell lysate (10 µg/Lane)
Lane 5: NIH/3T3 cell lysate (10 µg/Lane)
Lane 6: PC-12 cell lysate (10 µg/Lane)
Lane 7: PMVEC cell lysate (10 µg/Lane)
Lane 8: Mouse brain tissue lysate (20 µg/Lane)
Predicted band size: 72 kDa
Observed band size: 75 kDa
Exposure time: 1 minute;
8% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601076) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1:100,000 dilution was used for 1 hour at room temperature.
Lane 1: HepG2 cell lysate (10 µg/Lane)
Lane 2: MCF-7 cell lysate (10 µg/Lane)
Lane 3: RAW264.7 cell lysate (10 µg/Lane)
Lane 4: F9 cell lysate (10 µg/Lane)
Lane 5: NIH/3T3 cell lysate (10 µg/Lane)
Lane 6: PC-12 cell lysate (10 µg/Lane)
Lane 7: PMVEC cell lysate (10 µg/Lane)
Lane 8: Mouse brain tissue lysate (20 µg/Lane)
Predicted band size: 72 kDa
Observed band size: 75 kDa
Exposure time: 1 minute;
8% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA601076) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1:100,000 dilution was used for 1 hour at room temperature.
