ERK-MAPK Pathway Antibody Kit (HAK21117)
Catalog# HAK21117
Reacts with
-
Human
-
Mouse

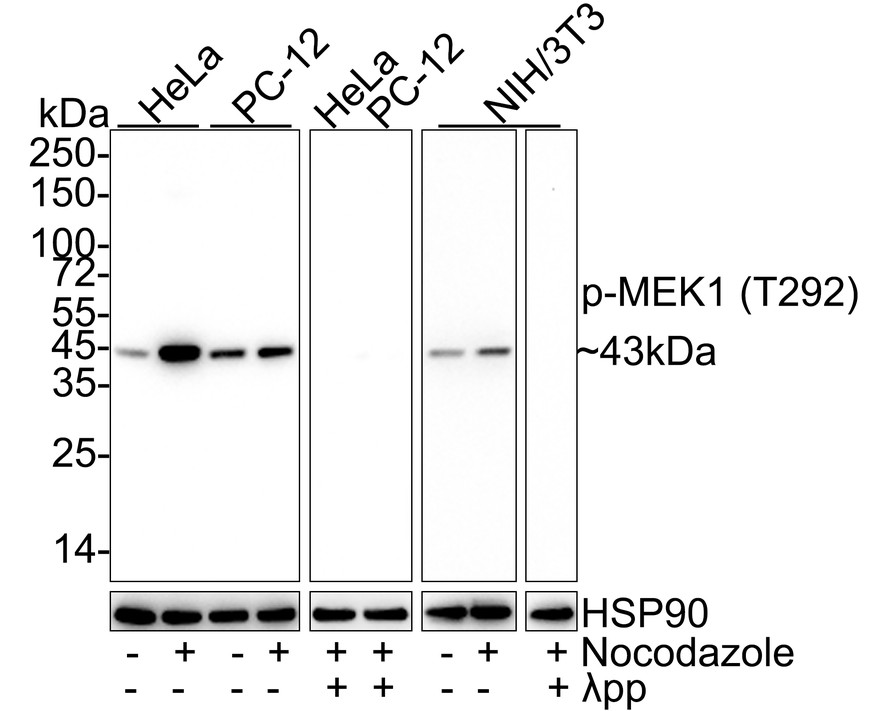

Western blot analysis of Phospho-MEK1 (T292) on different lysates with Rabbit anti-Phospho-MEK1 (T292) antibody (ET1612-42) at 1/1,000 dilution.
Lane 1: HeLa cell lysate
Lane 2: HeLa treated with 100ng/mL Nocodazole for 17 hours cell lysate
Lane 3: PC-12 cell lysate
Lane 4: PC-12 treated with 100ng/mL Nocodazole for 18 hours cell lysate
Lane 5: HeLa treated with 100ng/mL Nocodazole for 17 hours cell lysate, then the membrane treated with λpp for 1 hour
Lane 6: PC-12 treated with 100ng/mL Nocodazole for 18 hours cell lysate, then the membrane treated with λpp for 1 hour
Lane 7: NIH/3T3 cell lysate
Lane 8: NIH/3T3 treated with 100ng/mL Nocodazole for 18 hours cell lysate
Lane 9: NIH/3T3 treated with 100ng/mL Nocodazole for 18 hours cell lysate, then the membrane treated with λpp for 1 hour
Lysates/proteins at 20 µg/Lane.
Predicted band size: 43 kDa
Observed band size: 43 kDa
Exposure time: 3 minutes; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1612-42) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
Lane 1: HeLa cell lysate
Lane 2: HeLa treated with 100ng/mL Nocodazole for 17 hours cell lysate
Lane 3: PC-12 cell lysate
Lane 4: PC-12 treated with 100ng/mL Nocodazole for 18 hours cell lysate
Lane 5: HeLa treated with 100ng/mL Nocodazole for 17 hours cell lysate, then the membrane treated with λpp for 1 hour
Lane 6: PC-12 treated with 100ng/mL Nocodazole for 18 hours cell lysate, then the membrane treated with λpp for 1 hour
Lane 7: NIH/3T3 cell lysate
Lane 8: NIH/3T3 treated with 100ng/mL Nocodazole for 18 hours cell lysate
Lane 9: NIH/3T3 treated with 100ng/mL Nocodazole for 18 hours cell lysate, then the membrane treated with λpp for 1 hour
Lysates/proteins at 20 µg/Lane.
Predicted band size: 43 kDa
Observed band size: 43 kDa
Exposure time: 3 minutes; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1612-42) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
