PRODUCT CODE: ET1702-49

PDGFR alpha Recombinant Rabbit Monoclonal Antibody [JF104-6] (ET1702-49)

  • Recombinant

Applications

  • WB

  • ICC

  • IHC-P

  • FC

REACTIVITY

  • Human

  • Mouse

  • Rat

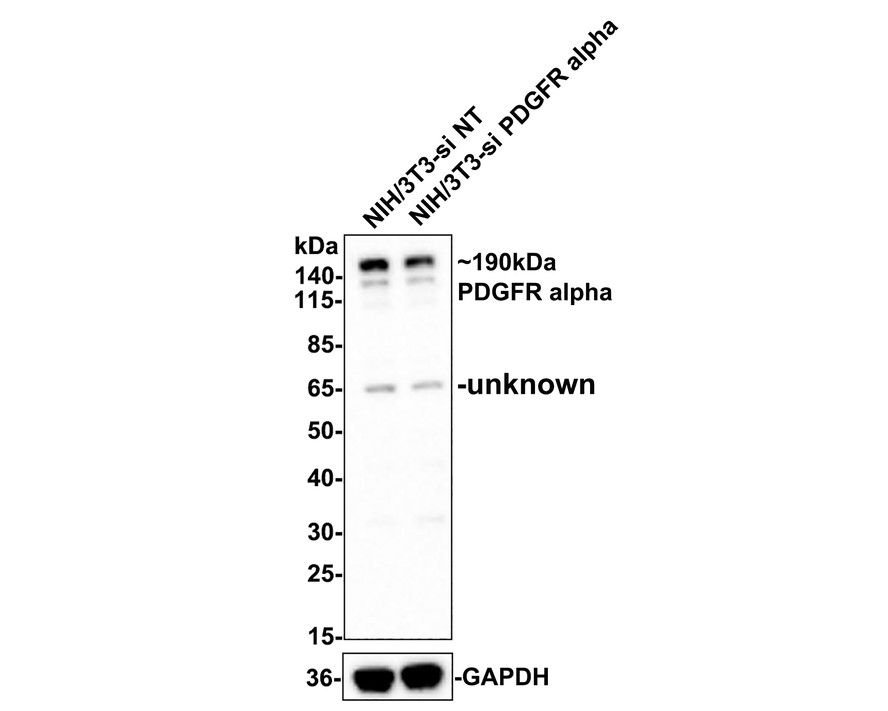

Western blot analysis of PDGFR alpha on NIH/3T3 cell lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1702-49, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

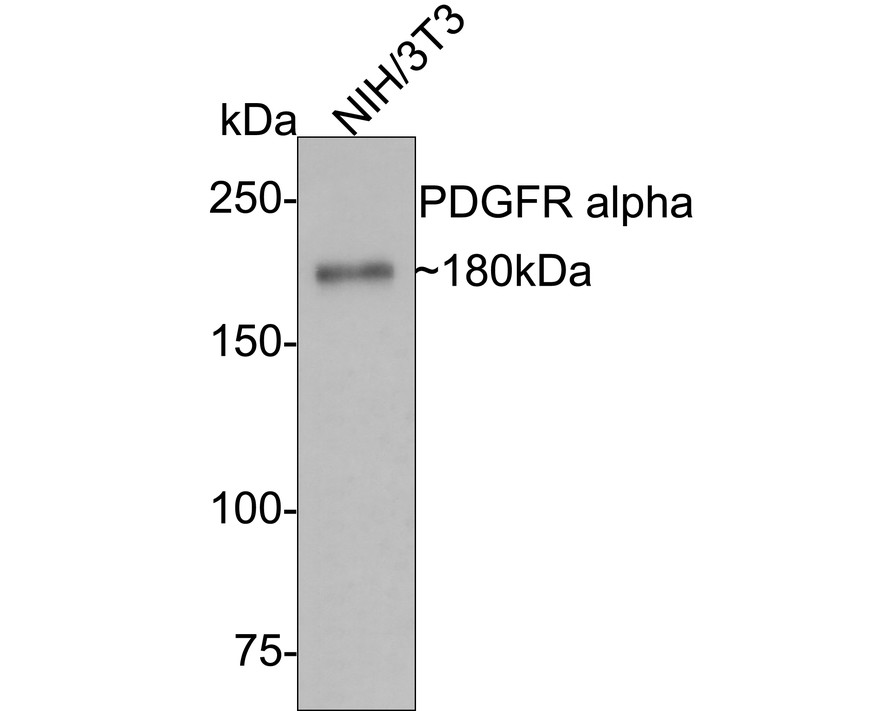

  • Western blot analysis of PDGFR alpha on NIH/3T3 cell lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1702-49, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
  • Western blot analysis of PDGFR alpha on SHG-44 cell lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1702-49, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
  • ICC staining of PDGFR alpha in A549 cells (red). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1702-49, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®594 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
  • ICC staining of PDGFR alpha in NIH/3T3 cells (red). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1702-49, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®594 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
  • Immunohistochemical analysis of paraffin-embedded mouse colon tissue using anti-PDGFR alpha antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-49, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded mouse brain tissue using anti-PDGFR alpha antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-49, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded mouse uterus tissue using anti-PDGFR alpha antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1702-49, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Flow cytometric analysis of PDGFR alpha was done on NIH/3T3 cells. The cells were fixed, permeabilized and stained with the primary antibody (ET1702-49, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
Western blot analysis of PDGFR alpha on NIH/3T3 cell lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1702-49, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

Applications

  • WB

  • ICC

  • IHC-P

  • FC

REACTIVITY

  • Human

  • Mouse

  • Rat

SPECIFICATIONS

Product Type

Recombinant Rabbit monoclonal primary

Product Name

PDGFR alpha Recombinant Rabbit Monoclonal Antibody [JF104-6] (ET1702-49)

Immunogen

Synthetic peptide within c-terminal human pdgfr alpha.

Host

Rabbit

Positive Control

NIH/3T3 cell lysates, SHG-44 cell lysates, A549, NIH/3T3, mouse colon tissue, mouse brain tissue, mouse uterus tissue.

Conjugation

Unconjugated

Clonality

Monoclonal

Clone Number

JF104-6

PROPERTIES

Form

Liquid

Storage Condition

Store at +4C after thawing. Aliquot store at -20C or -80C. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Concentration

1 ug/ul

PURIFICATION

Protein A affinity purified.

MOLECULAR WEIGHT

123 kDa

Isotype

IgG

APPLICATION DILUTION

  • WB

  • 1:1,000-1:5,000

  • ICC

  • 1:50-1:200

  • IHC-P

  • 1:50-1:200

  • FC

  • 1:50-1:100

TARGET

UNIPROT #

PROTEIN NAME

PDGFR alpha

SYNONYMS

Alpha-type platelet-derived growth factor receptor antibody; CD140 antigen-like family member A antibody; CD140a antibody; CD140a antigen antibody; MGC74795 antibody; PDGF alpha chain antibody; PDGF-R-alpha antibody; PDGFR 2 antibody; PDGFR alpha antibody; PDGFR2 antibody; PDGFRA antibody; PDGFRA/BCR fusion antibody; PGFRA_HUMAN antibody; Platelet derived growth factor receptor 2 antibody; Platelet derived growth factor receptor alpha antibody; Platelet derived growth factor receptor alpha polypeptide antibody; Platelet derived growth factor receptor antibody; Rearranged in hypereosinophilia platelet derived growth factor receptor alpha fusion protein antibody; RHEPDGFRA antibody

SEQUENCE SIMILARITIES

Belongs to the protein kinase superfamily. Tyr protein kinase family. CSF-1/PDGF receptor subfamily.

TISSUE SPECIFICITY

Detected in platelets (at protein level). Widely expressed. Detected in brain, fibroblasts, smooth muscle, heart, and embryo. Expressed in primary and metastatic colon tumors and in normal colon tissue.

POST-TRANSLATIONAL MODIFICATION

N-glycosylated.; Ubiquitinated, leading to its internalization and degradation.; Autophosphorylated on tyrosine residues upon ligand binding. Autophosphorylation occurs in trans, i.e. one subunit of the dimeric receptor phosphorylates tyrosine residues on the other subunit. Phosphorylation at Tyr-731 and Tyr-742 is important for interaction with PIK3R1. Phosphorylation at Tyr-720 and Tyr-754 is important for interaction with PTPN11. Phosphorylation at Tyr-762 is important for interaction with CRK. Phosphorylation at Tyr-572 and Tyr-574 is important for interaction with SRC and SRC family members. Phosphorylation at Tyr-988 and Tyr-1018 is important for interaction with PLCG1.

SUBCELLULAR LOCATION

Golgi apparatus, Cell membrane, cilium.

FUNCTION

Platelet-derived growth factor (PDGF) is a mitogen for mesenchyme- and glia-derived cells. PDGF consists of two chains, A and B, which dimerize to form functionally distinct isoforms, PGDF-AA, PDGF-AB and PDGF-BB. These three isoforms bind with different affinities to two receptor types, PDGFR-α and -β, which are endowed with protein tyrosine kinase domains. PDGFR-α can bind to both A and B subunits of PDGF, while PDGFR-β can only bind the B subunit. Ligand binding promotes either homo- or heterodimerization of the PDGF receptors in a specific manner. PDGF-AA induces the dimerization of two α receptors, PDGF-AB induces dimerization of αα and αβ and PDGF-BB induces the formation of three types of dimers, αα, αβ and ββ. Translocation of the PDGFR-β gene with the Tel gene is linked to chronic myelomonocytic leukemia (CMML), a myelodysplastic syndrome, and demonstrates the oncogenic potential of the PDGF receptors.
