CD166 Recombinant Rabbit Monoclonal Antibody [JE57-47]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA722705

CD166 Recombinant Rabbit Monoclonal Antibody [JE57-47]

Application

  • WB

  • IHC-P

  • FC

  • IHC-Fr

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

CD166 Recombinant Rabbit Monoclonal Antibody [JE57-47]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Synthetic peptide within human CD166 aa 550-583 / 583.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IHC-P, FC, IHC-Fr

Target Molecular Weight

Predicted band size: 65 kDa

Positive Control

U-2 OS cell lysate, A549 cell lysate, SH-SY5Y cell lysate, Mouse brain tissue lysate, Mouse liver tissue lysate, Rat brain tissue lysate, Rat liver tissue lysate, SH-SY5Y, human liver tissue, human stomach tissue, mouse liver tissue, mouse stomach tissue, rat liver tissue, rat stomach tissue.

Conjugation

unconjugated

Clone Number

JE57-47

Product Features

Form

Liquid

Concentration

1 mg/mL.(The concentration of this product may be batch-dependent)

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:1,000

  • IHC-P

  • 1:200

  • FC

  • 1:1,000

  • IHC-Fr

  • 1:200

Target

Function

CD166 antigen is a 100-105 kD typeI transmembrane glycoprotein that is a member of the immunoglobulin superfamily of proteins. In humans it is encoded by the ALCAM gene. It is also called CD166 (cluster of differentiation 166), MEMD, SC-1/DM-GRASP/BEN in the chicken, and KG-CAM in the rat. Some literature sources have also cited it as the CD6 ligand (CD6L). It is expressed on activated T cells, activated monocytes, epithelial cells, fibroblasts, neurons, melanoma cells, and also in sweat and sebaceous glands. CD166 protein expression is reported to be upregulated in a cell line deriving from a metastasizing melanoma. CD166 plays an important role in mediating adhesion interactions between thymic epithelial cells and CD6+ cells during intrathymic T cell development. Recently, CD166 has also been used as a potential cancer stem cell marker.

Background References

1. Ferragut F et al. ALCAM/CD166: A pleiotropic mediator of cell adhesion, stemness and cancer progression. Cytokine Growth Factor Rev. 2021 Oct

2. He S et al. CD166-specific CAR-T cells potently target colorectal cancer cells. Transl Oncol. 2023 Jan

Subcellular Location

Cell membrane, Cell projection, axon, dendrite; Secreted.

UNIPROT

SwissProt: Q13740 Human

SwissProt: Q61490 Mouse

SwissProt: O35112 Rat

Synonyms

Activated leukocyte cell adhesion molecule antibody

ALCAM antibody

ALCAM protein antibody

CD 166 antibody

CD166 antibody

CD166 antigen antibody

CD166_HUMAN antibody

FLJ3851 antibody

FLJ38514 antibody

MEMD antibody

Expand

Images

  • Western blot analysis of CD166 on different lysates with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/1,000 dilution.<br /><br />Lane 1: U-2 OS cell lysate (20 µg/Lane)<br />Lane 2: A549 cell lysate (20 µg/Lane)<br />Lane 3: SH-SY5Y cell lysate (20 µg/Lane)<br />Lane 4: Mouse brain tissue lysate (40 µg/Lane)<br />Lane 5: Mouse liver tissue lysate (40 µg/Lane)<br />Lane 6: Rat brain tissue lysate (40 µg/Lane)<br />Lane 7: Rat liver tissue lysate (40 µg/Lane)<br /><br />Predicted band size: 65 kDa<br />Observed band size: 90-105 kDa<br /><br />Exposure time: 30 seconds; ECL: K1801;<br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

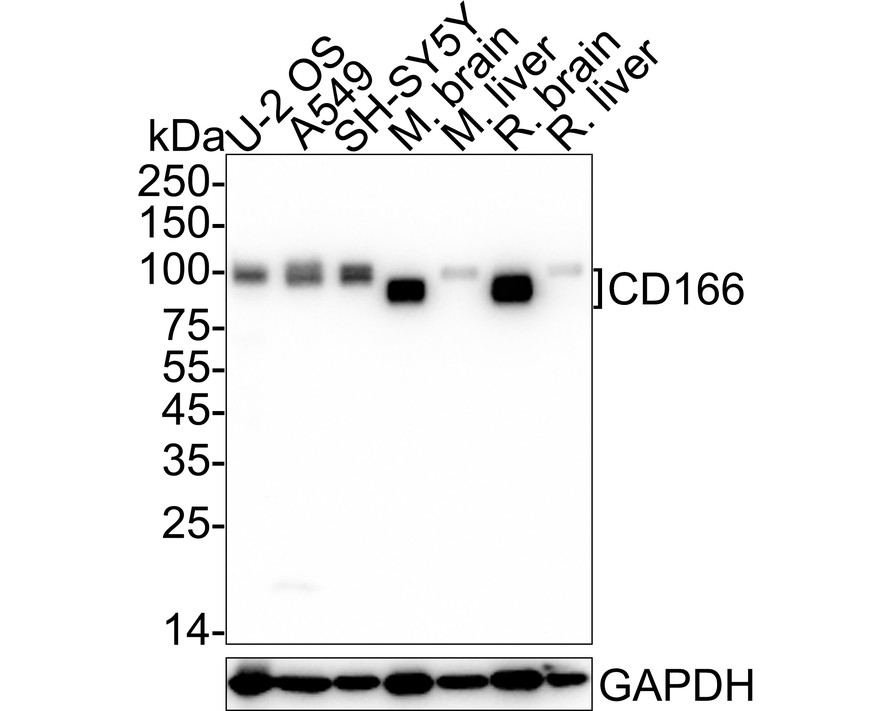

    Western blot analysis of CD166 on different lysates with Rabbit anti-CD166 antibody (HA722705) at 1/1,000 dilution.

    Lane 1: U-2 OS cell lysate (20 µg/Lane)
    Lane 2: A549 cell lysate (20 µg/Lane)
    Lane 3: SH-SY5Y cell lysate (20 µg/Lane)
    Lane 4: Mouse brain tissue lysate (40 µg/Lane)
    Lane 5: Mouse liver tissue lysate (40 µg/Lane)
    Lane 6: Rat brain tissue lysate (40 µg/Lane)
    Lane 7: Rat liver tissue lysate (40 µg/Lane)

    Predicted band size: 65 kDa
    Observed band size: 90-105 kDa

    Exposure time: 30 seconds; ECL: K1801;
    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722705) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Flow cytometric analysis of SH-SY5Y cells labeling CD166.<br /><br />Cells were fixed and permeabilized. Then stained with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor&trade; 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (<a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

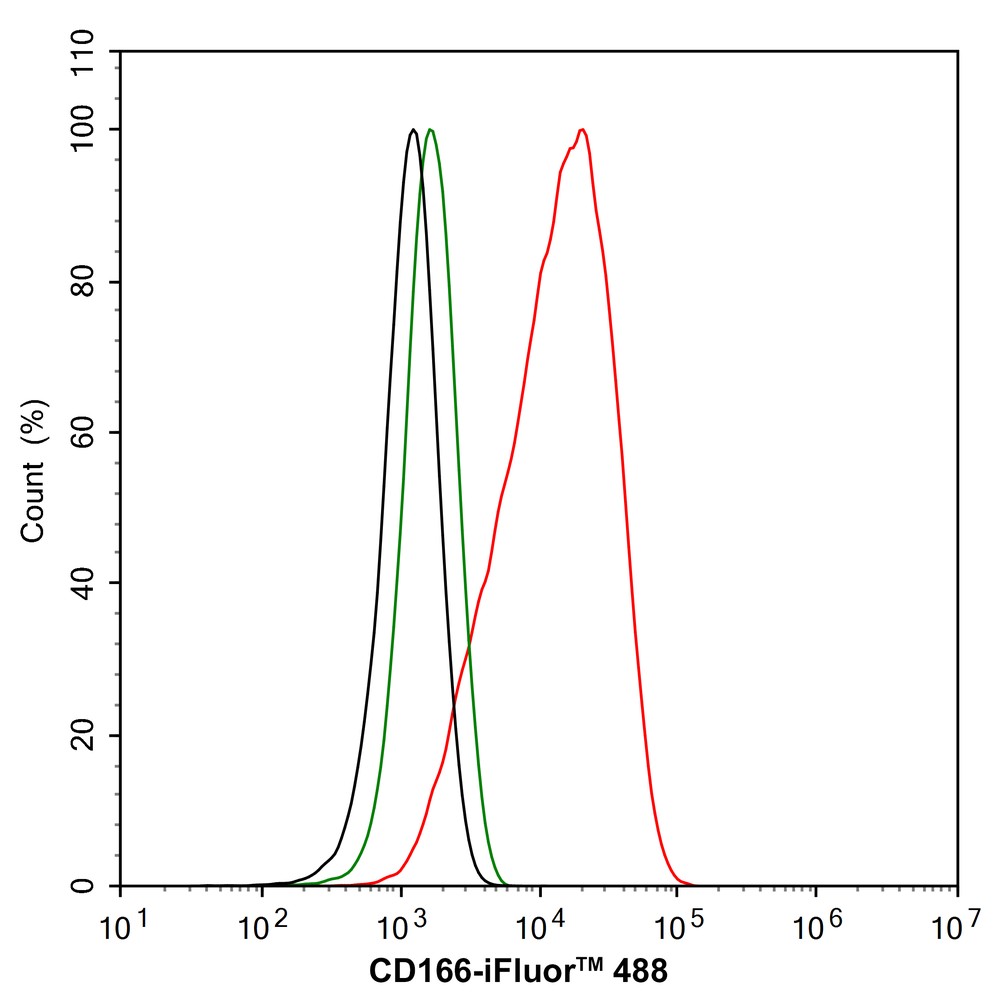

    Flow cytometric analysis of SH-SY5Y cells labeling CD166.

    Cells were fixed and permeabilized. Then stained with the primary antibody (HA722705, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

  • Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-CD166 antibody (HA722705) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722705) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human stomach tissue with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human stomach tissue with Rabbit anti-CD166 antibody (HA722705) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722705) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Rabbit anti-CD166 antibody (HA722705) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722705) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse stomach tissue with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse stomach tissue with Rabbit anti-CD166 antibody (HA722705) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722705) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat liver tissue with Rabbit anti-CD166 antibody (HA722705) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722705) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat stomach tissue with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat stomach tissue with Rabbit anti-CD166 antibody (HA722705) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA722705) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunofluorescence analysis of frozen mouse liver tissue with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for about 2 minutes in microwave oven. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

    Immunofluorescence analysis of frozen mouse liver tissue with Rabbit anti-CD166 antibody (HA722705) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for about 2 minutes in microwave oven. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA722705, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

  • Immunofluorescence analysis of frozen mouse stomach tissue with Rabbit anti-CD166 antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for about 2 minutes in microwave oven. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (<a href="/products/HA722705" style="font-weight: bold;text-decoration: underline;">HA722705</a>, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

    Immunofluorescence analysis of frozen mouse stomach tissue with Rabbit anti-CD166 antibody (HA722705) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for about 2 minutes in microwave oven. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (HA722705, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
