TOMM22 Recombinant Rabbit Monoclonal Antibody [JE34-95]

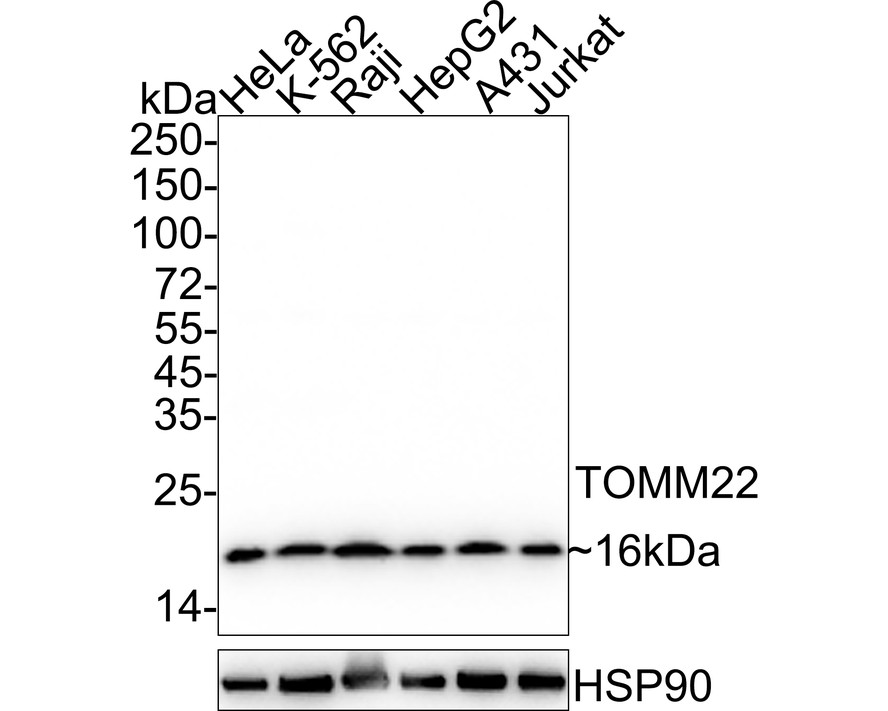

Western blot analysis of TOMM22 on different lysates with Rabbit anti-TOMM22 antibody (HA722237) at 1/5,000 dilution.

Lane 1: HeLa cell lysate
Lane 2: K-562 cell lysate
Lane 3: Raji cell lysate
Lane 4: HepG2 cell lysate
Lane 5: A431 cell lysate
Lane 6: Jurkat cell lysate

Lysates/proteins at 15 µg/Lane.

Predicted band size: 16 kDa
Observed band size: 16 kDa

Exposure time: 2 seconds; ECL: K1801;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA722237) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

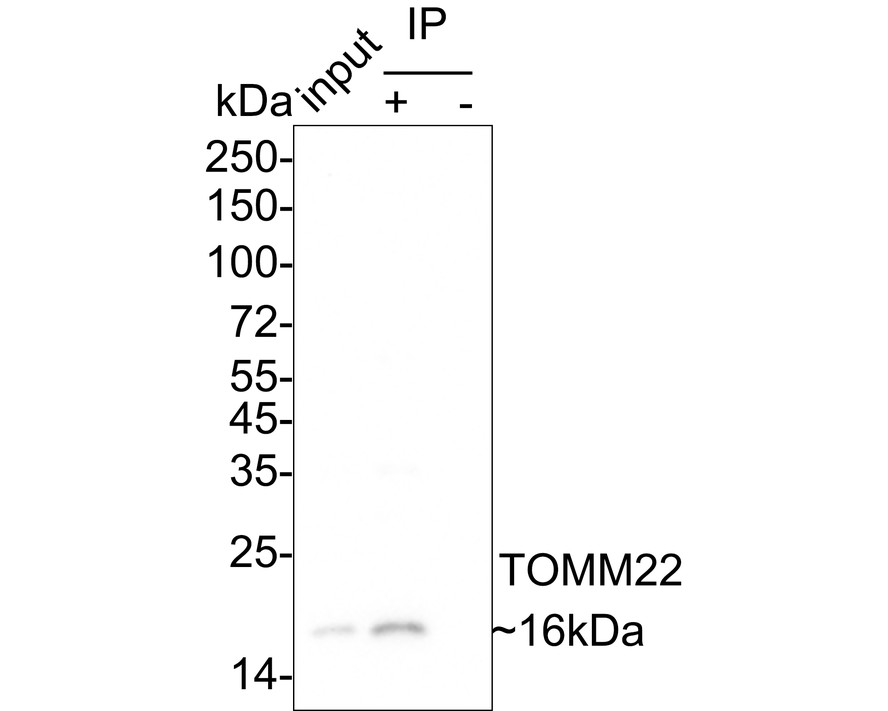

TOMM22 was immunoprecipitated from 0.2 mg HeLa cell lysate with HA722237 at 2 µg/10 µl beads. Western blot was performed from the immunoprecipitate using HA722237 at 1/1,000 dilution. Anti-Rabbit IgG for IP, AlpSdAbs® VHH(HRP) (025-100-005) at 1/5,000 dilution was used for 1 hour at room temperature.

Lane 1: HeLa cell lysate (input)
Lane 2: HA722237 IP in HeLa cell lysate
Lane 3: Rabbit IgG instead of HA722237 in HeLa cell lysate

Blocking/Dilution buffer: 5% NFDM/TBST
Exposure time: 20 seconds; ECL: K1801

Immunocytochemistry analysis of HeLa cells labeling TOMM22 with Rabbit anti-TOMM22 antibody (HA722237) at 1/250 dilution.

Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-TOMM22 antibody (HA722237) at 1/250 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Counterstained with Mitotracker. Nuclear DNA was labelled in blue with DAPI.

Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-TOMM22 antibody (HA722237) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA722237) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Immunohistochemical analysis of paraffin-embedded human liver tissue with Rabbit anti-TOMM22 antibody (HA722237) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (HA722237) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

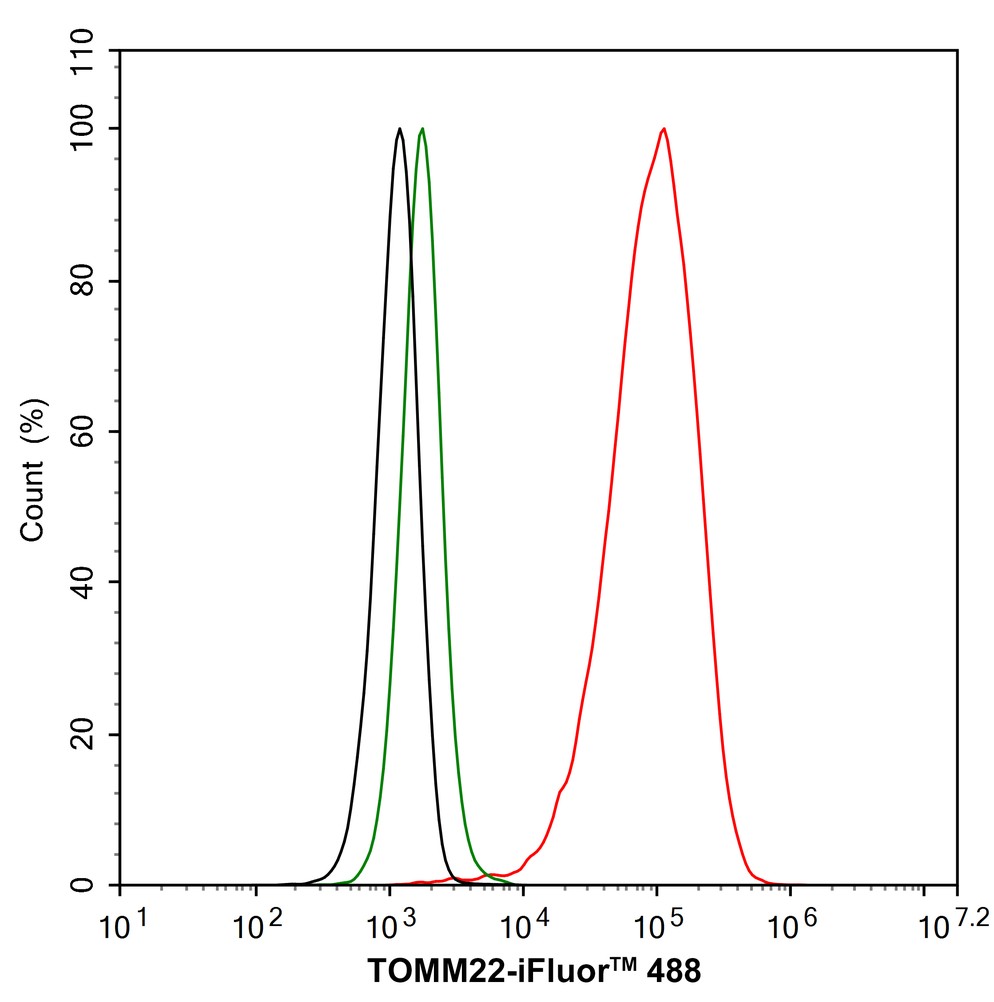

Flow cytometric analysis of HeLa cells labeling TOMM22.

Cells were fixed and permeabilized. Then stained with the primary antibody (HA722237, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
