ARFRP1 Recombinant Rabbit Monoclonal Antibody [JE63-32]

Usd: 385

Specification

Bulk Order Quote | Customization Request

Catalog# HA721020

ARFRP1 Recombinant Rabbit Monoclonal Antibody [JE63-32]

Application

  • WB

  • IF-Cell

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

ARFRP1 Recombinant Rabbit Monoclonal Antibody [JE63-32]

Antibody Type

Recombinant Rabbit monoclonal Antibody

Immunogen

Recombinant protein within human ARFRP1 aa 50-201/201.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IF-Cell, IHC-P

Molecular Weight

Predicted band size: 23 kDa

Positive Control

HepG2 cell lysate, HEK-293 cell lysate, Mouse brain tissue lysate, Mouse heart tissue lysate, Rat lung tissue lysate, HepG2, human breast cancer tissue, human pancreas tissue, human stomach tissue, mouse stomach tissue, rat stomach tissue.

Conjugation

unconjugated

Clone Number

JE63-32

RRID

AB_3072144

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:2,000

  • IF-Cell

  • 1:100

  • IHC-P

  • 1:200

Target

Function

Trans-Golgi-associated GTPase that regulates protein sorting. Controls the targeting of ARL1 and its effector to the trans-Golgi. Required for the lipidation of chylomicrons in the intestine and required for VLDL lipidation in the liver. The protein encoded by this gene is a membrane-associated GTP-ase which localizes to the plasma membrane and is related to the ADP-ribosylation factor (ARF) and ARF-like (ARL) proteins. This gene plays a role in membrane trafficking between the trans-Golgi network and endosomes. Alternatively spliced transcript variants encoding different isoforms have been identified.

Background References

1. Yang F. et. al. The amphipathic helices of Arfrp1 and Arl14 are sufficient to determine subcellular localizations. J Biol Chem. 2020 Dec

2. Zhang G. et. al. LncRNA ARFRP1 knockdown inhibits LPS-induced the injury of chondrocytes by regulation of NF-kappaB pathway through modulating miR-15a-5p/TLR4 axis. Life Sci. 2020 Nov

Subcellular Location

Golgi apparatus, trans-Golgi network.

UNIPROT

SwissProt: Q13795 Human

SwissProt: Q8BXL7 Mouse

SwissProt: Q63055 Rat

Synonyms

ADP ribosylation factor related protein 1 antibody

ADP-ribosylation factor-related protein 1 antibody

ARF related protein 1 antibody

ARF related protein antibody

ARF-related protein 1 antibody

ARFRP_HUMAN antibody

ARFRP1 antibody

ARL 18 antibody

ARL18 antibody

ARP 1 antibody

Expand

Images

  • Western blot analysis of ARFRP1 on different lysates with Rabbit anti-ARFRP1 antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/2,000 dilution.<br /><br />Lane 1: HepG2 cell lysate (20 µg/Lane)<br />Lane 2: HEK-293 cell lysate (20 µg/Lane)<br />Lane 3: Mouse brain tissue lysate (40 µg/Lane)<br />Lane 4: Mouse heart tissue lysate (40 µg/Lane)<br />Lane 5: Rat lung tissue lysate (40 µg/Lane)<br /><br />Predicted band size: 23 kDa<br />Observed band size: 23 kDa<br /><br />Exposure time: 3 minutes; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

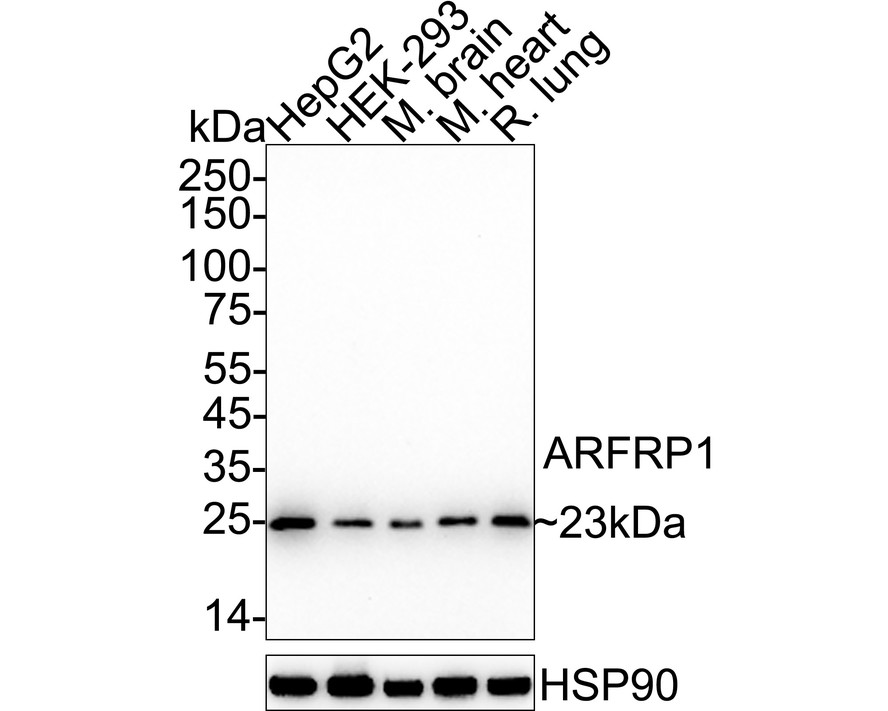

    Western blot analysis of ARFRP1 on different lysates with Rabbit anti-ARFRP1 antibody (HA721020) at 1/2,000 dilution.

    Lane 1: HepG2 cell lysate (20 µg/Lane)
    Lane 2: HEK-293 cell lysate (20 µg/Lane)
    Lane 3: Mouse brain tissue lysate (40 µg/Lane)
    Lane 4: Mouse heart tissue lysate (40 µg/Lane)
    Lane 5: Rat lung tissue lysate (40 µg/Lane)

    Predicted band size: 23 kDa
    Observed band size: 23 kDa

    Exposure time: 3 minutes; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721020) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • Immunocytochemistry analysis of HepG2 cells labeling ARFRP1 with Rabbit anti-ARFRP1 antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/100 dilution.<br /><br />Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-ARFRP1 antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.<br /><br />Beta tubulin (<a href="/products/HA601187" style="font-weight: bold;text-decoration: underline;">HA601187</a>, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor&trade; 594, <a href="/products/HA1126" style="font-weight: bold;text-decoration: underline;">HA1126</a>) was used as the secondary antibody at 1/1,000 dilution.

    Immunocytochemistry analysis of HepG2 cells labeling ARFRP1 with Rabbit anti-ARFRP1 antibody (HA721020) at 1/100 dilution.

    Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-ARFRP1 antibody (HA721020) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

    Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

  • Immunohistochemical analysis of paraffin-embedded human breast cancer tissue with Rabbit anti-ARFRP1 antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human breast cancer tissue with Rabbit anti-ARFRP1 antibody (HA721020) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721020) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human pancreas tissue with Rabbit anti-ARFRP1 antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human pancreas tissue with Rabbit anti-ARFRP1 antibody (HA721020) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721020) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded human stomach tissue with Rabbit anti-ARFRP1 antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human stomach tissue with Rabbit anti-ARFRP1 antibody (HA721020) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721020) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse stomach tissue with Rabbit anti-ARFRP1 antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse stomach tissue with Rabbit anti-ARFRP1 antibody (HA721020) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721020) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat stomach tissue with Rabbit anti-ARFRP1 antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/HA721020" style="font-weight: bold;text-decoration: underline;">HA721020</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat stomach tissue with Rabbit anti-ARFRP1 antibody (HA721020) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (HA721020) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
