PD-1 (programmed cell death-1 protein) is a type I transmembrane receptor and a member of the immunoglobin gene superfamily. Expression of PD-1 is detected in mouse thymus, and it is induced in stimulated B and T cell lines, where it may play a role in the negative regulation of various immune responses. PD-2 (also known as PDCD2, PDL2 or B7DC) is highly expressed in placenta, heart, pancreas, lung and liver. PD-2 is also expressed in spleen, lymph nodes and thymus. Pdcd-4 is a nuclear protein localized to the nucleus of proliferating cells. ALG-2 (apoptosis-linked gene 2), also designated programmed cell death protein 6, is a Ca2+-binding protein that participates in regulatory events occurring late in the apoptotic program and where several death signals converge. Pdcd-7, also designated programmed cell death protein 7, is a 485 amino acid protein that promotes apoptosis when overexpressed. Human Pdcd-7 and the mouse Pdcd-7 protein, designated as Es18, share 95% homology in the overlapping region.
Background References
1. Abo Elwafa R. et. al. The clinical and prognostic significance of FIS1, SPI1, PDCD7 and Ang2 expression levels in acute myeloid leukemia. Cancer Genet. 2019 Apr
2. Peng SY. et. al. miR-134 targets PDCD7 to reduce E-cadherin expression and enhance oral cancer progression. Int J Cancer. 2018 Dec

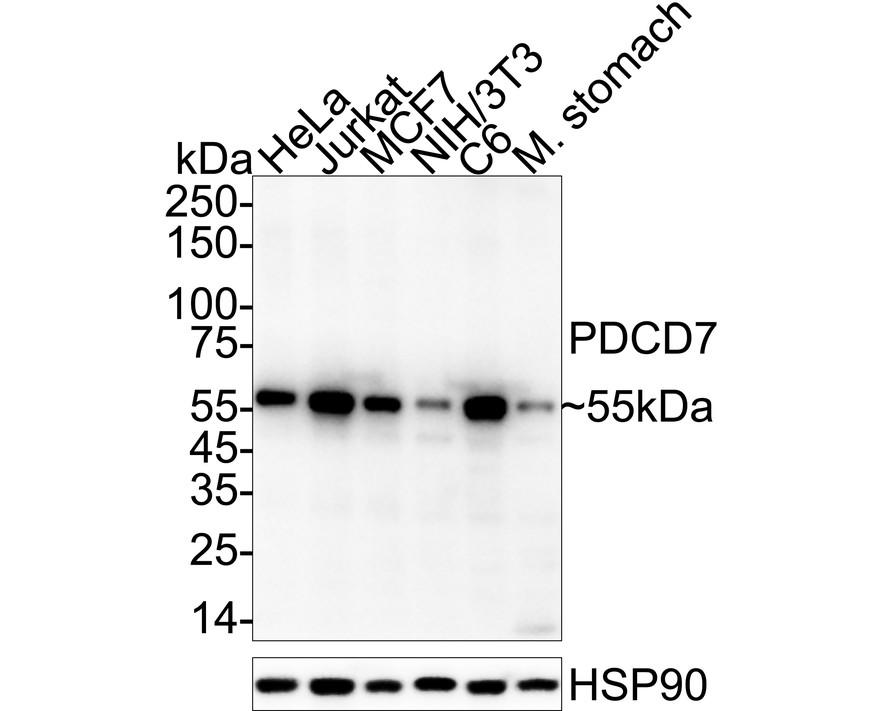

Western blot analysis of PDCD7 on different lysates with Rabbit anti-PDCD7 antibody (HA720033) at 1/5,000 dilution.
Lane 1: HeLa cell lysate (20 µg/Lane) Lane 2: Jurkat cell lysate (20 µg/Lane) Lane 3: MCF7 cell lysate (20 µg/Lane) Lane 4: NIH/3T3 cell lysate (20 µg/Lane) Lane 5: C6 cell lysate (20 µg/Lane) Lane 6: Mouse stomach tissue lysate (30 µg/Lane)
Predicted band size: 55 kDa Observed band size: 55 kDa
Exposure time: 51 seconds; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA720033) at 1/5,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.
