KCNQ4 Rabbit Polyclonal Antibody

Usd: 315

Specification

Bulk Order Quote | Customization Request

Catalog# ER2001-23

KCNQ4 Rabbit Polyclonal Antibody

Application

  • WB

  • IF-Cell

  • IHC-P

  • FC

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

Overview

Product Name

KCNQ4 Rabbit Polyclonal Antibody

Antibody Type

Rabbit Polyclonal Antibody

Immunogen

Synthetic peptide within mouse KCNQ4 aa 580-640.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IF-Cell, IHC-P, FC

Target Molecular Weight

77kDa

Positive Control

Rat kidney tissue lysates, 293T, rat smooth muscle tissue, mouse brain tissue, K562.

Conjugation

unconjugated

RRID

AB_3069502

Product Features

Form

Liquid

Concentration

1 mg/mL.(The concentration of this product may be batch-dependent)

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Storage Buffer

1*TBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Immunogen affinity purified.

Application Dilution

  • WB

  • 1:5,000

  • IF-Cell

  • 1:50-1:200

  • IHC-P

  • 1:50-1:200

  • FC

  • 1:50-1:100

Target

Function

Probably important in the regulation of neuronal excitability. May underlie a potassium current involved in regulating the excitability of sensory cells of the cochlea. KCNQ4 channels are blocked by linopirdin, XE991 and bepridil, whereas clofilium is without significant effect. Muscarinic agonist oxotremorine-M strongly suppress KCNQ4 current in CHO cells in which cloned KCNQ4 channels were coexpressed with M1 muscarinic receptors. Mutagenesis experiments were carried out by expressing in Xenopus oocytes KCNQ4 mutants either individually (homomultimers) or in combination with wild-type KCNQ4 (mut/wt homomultimers) in a ratio of 1:1, to mimic the situation in a heterozygous DFNA2 patient.

Background References

1. Kubisch C. et. al. KCNQ4, a novel potassium channel expressed in sensory outer hair cells, is mutated in dominant deafness. Cell 96:437-446(1999).

Subcellular Location

Cell membrane, Membrane.

UNIPROT

SwissProt: P56696 Human

SwissProt: Q9JK97 Mouse

SwissProt: Q9JK96 Rat

Synonyms

DFNA 2 antibody

DFNA2 antibody

KCNQ 4 antibody

Kcnq4 antibody

KCNQ4_HUMAN antibody

KQT like 4 antibody

KQT-like 4 antibody

KV7.4 antibody

Potassium channel KQT like 4 antibody

Potassium channel subunit alpha KvLQT4 antibody

Expand

Images

  • ICC staining of KCNQ4 in 293T cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (<a href="/products/ER2001-23" style="font-weight: bold;text-decoration: underline;">ER2001-23</a>, 1/100) for 1 hour at room temperature, washed with PBS. Alexa Fluor&reg;488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).

    ICC staining of KCNQ4 in 293T cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ER2001-23, 1/100) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).

  • Immunohistochemical analysis of paraffin-embedded rat smooth muscle tissue using anti-KCNQ4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER2001-23" style="font-weight: bold;text-decoration: underline;">ER2001-23</a>, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat smooth muscle tissue using anti-KCNQ4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER2001-23, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse brain tissue using anti-KCNQ4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER2001-23" style="font-weight: bold;text-decoration: underline;">ER2001-23</a>, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse brain tissue using anti-KCNQ4 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER2001-23, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Flow cytometric analysis of KCNQ4 was done on K562 cells. The cells were fixed, permeabilized and stained with the primary antibody (<a href="/products/ER2001-23" style="font-weight: bold;text-decoration: underline;">ER2001-23</a>, 1/100) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated goat anti-rabbit IgG Secondary antibody at 1/500 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

    Flow cytometric analysis of KCNQ4 was done on K562 cells. The cells were fixed, permeabilized and stained with the primary antibody (ER2001-23, 1/100) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated goat anti-rabbit IgG Secondary antibody at 1/500 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).

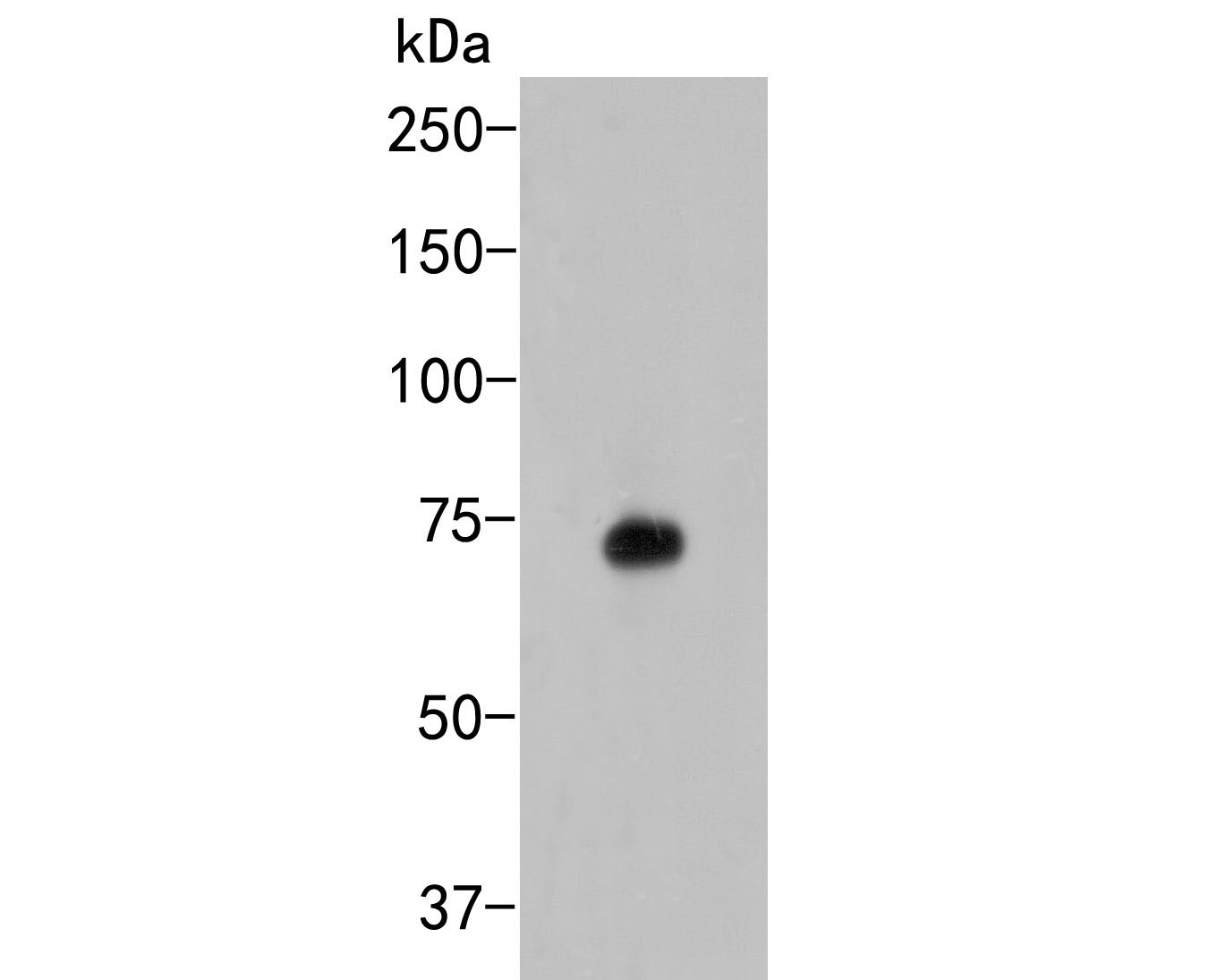

  • Western blot analysis of KCNQ4 on different lysates with Rabbit anti-KCNQ4 antibody (<a href="/products/ER2001-23" style="font-weight: bold;text-decoration: underline;">ER2001-23</a>) at 1/5,000 dilution.<br /><br />Lane 1: Rat kidney<br /><br />Exposure time: 10 seconds; ECL: K1801<br /><br /><br />Blocking: 5% NFDM/TBST, 1 hour at room temperature<br />Primary antibody: <a href="/products/ER2001-23" style="font-weight: bold;text-decoration: underline;">ER2001-23</a>, 1/5,000 in primary antibody dilution buffer (<a href="/products/K1803" style="font-weight: bold;text-decoration: underline;">K1803</a>), overnight at 4 ℃<br />Secondary antibody: Goat anti-Rabbit IgG-HRP (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature<br /><br />Predicted band size: 77 kDa<br />Observed band size: 75 kDa

    Western blot analysis of KCNQ4 on different lysates with Rabbit anti-KCNQ4 antibody (ER2001-23) at 1/5,000 dilution.

    Lane 1: Rat kidney

    Exposure time: 10 seconds; ECL: K1801


    Blocking: 5% NFDM/TBST, 1 hour at room temperature
    Primary antibody: ER2001-23, 1/5,000 in primary antibody dilution buffer (K1803), overnight at 4 ℃
    Secondary antibody: Goat anti-Rabbit IgG-HRP (HA1001), 1/50,000 in 5% NFDM/TBST, 1 hour at room temperature

    Predicted band size: 77 kDa
    Observed band size: 75 kDa

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
