CTGF Rabbit Polyclonal Antibody

Usd: 315

Specification

Bulk Order Quote | Customization Request

Catalog# ER1802-69

CTGF Rabbit Polyclonal Antibody

Application

  • WB

  • IF-Cell

  • IHC-P

Reactivity

  • Human

  • Mouse

  • Rat

Conjugation

  • unconjugated

This product has been cited in peer reviewed publications, see list HERE

Overview

Product Name

CTGF Rabbit Polyclonal Antibody

Antibody Type

Rabbit Polyclonal Antibody

Immunogen

Recombinant protein within human CTGF aa 1-349.

Species Reactivity

Human, Mouse, Rat

Validated Applications

WB, IF-Cell, IHC-P

Molecular Weight

Predicted band size: 38 kDa

Positive Control

PANC-1 cell lysate, HepG2 cell lysate, HFF-1 cell lysate, Mouse lung tissue lysate, Mouse heart tissue lysate, Rat heart tissue lysate, HepG2, human heart tissue, mouse heart tissue, mouse kidney tissue, rat heart tissue, rat kidney tissue.

Conjugation

unconjugated

RRID

AB_3069167

Product Features

Form

Liquid

Concentration

Storage Instructions

Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.

Storage Buffer

PBS (pH7.4), 0.1% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Isotype

IgG

Purification Method

Protein A affinity purified.

Application Dilution

  • WB

  • 1:5,000

  • IF-Cell

  • 1:500

  • IHC-P

  • 1:200-1:1,000

Target

Function

Connective tissue growth factor (CTGF, also known as hypertrophic chondrocyte-specific gene product 24 or Hcs24), is a member of the CCN family of immediate early proteins, which are involved in cell proliferation, migration and matrix production. CTGF is a cysteine-rich peptide that is secreted by endothelial cells, fibroblasts, smooth muscle cells and myofibroblasts. Its expression is increased in various human and animal fibrotic diseases. Specifically, CTGF has been observed to be strongly upregulated in human proliferative and fibrogenic renal disease. In addition, CTGF is a growth factor for vascular smooth muscle cells (VSMC) and may play a similar role in promoting VSMC growth and migration in vitro.

Background References

1. Nishida T et al. Roles of CCN2 as a mechano-sensing regulator of chondrocyte differentiation. Jpn Dent Sci Rev. 2020 Nov

2. Leguit RJ et al. CCN2 (Cellular Communication Network factor 2) in the bone marrow microenvironment, normal and malignant hematopoiesis. J Cell Commun Signal. 2021 Mar

Sequence Similarity

Belongs to the CCN family.

Tissue Specificity

Expressed in bone marrow and thymic cells. Also expressed one of two Wilms tumors tested.

Subcellular Location

Secreted, extracellular space, extracellular matrix

UNIPROT

SwissProt: P29279 Human

SwissProt: P29268 Mouse

SwissProt: Q9R1E9 Rat

Synonyms

CCN 2 antibody

CCN family member 2 antibody

CCN2 antibody

Connective tissue growth factor antibody

Ctgf antibody

CTGF_HUMAN antibody

Hcs 24 antibody

Hcs24 antibody

Hypertrophic chondrocyte specific protein 24 antibody

Hypertrophic chondrocyte-specific gene product 24 antibody

Expand

Images

  • <span style="font-weight: bold;">☑ Relative expression (RE)</span><br /><br />Western blot analysis of CTGF on different lysates with Rabbit anti-CTGF antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/5,000 dilution.<br /><br />Lane 1: PANC-1 cell lysate (20 µg/Lane)<br />Lane 2: HepG2 cell lysate (20 µg/Lane)<br />Lane 3: HEK-293 cell lysate (negative) (20 µg/Lane)<br />Lane 4: HFF-1 cell lysate (20 µg/Lane)<br />Lane 5: Mouse lung tissue lysate (40 µg/Lane)<br />Lane 6: Mouse heart tissue lysate (40 µg/Lane)<br />Lane 7: Rat heart tissue lysate (40 µg/Lane)<br /><br />Predicted band size: 38 kDa<br />Observed band size: 35 kDa<br /><br />Exposure time: 1 minute; ECL: K1801;<br /><br />4-20% SDS-PAGE gel.<br /><br />Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (<a href="/products/HA1001" style="font-weight: bold;text-decoration: underline;">HA1001</a>) at 1/50,000 dilution was used for 1 hour at room temperature.

    ☑ Relative expression (RE)

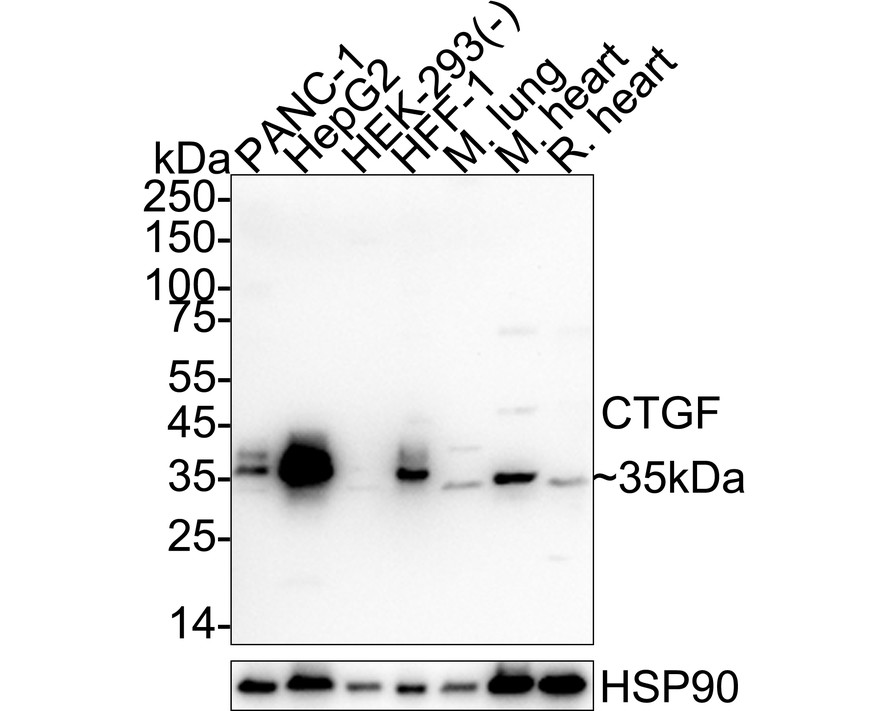

    Western blot analysis of CTGF on different lysates with Rabbit anti-CTGF antibody (ER1802-69) at 1/5,000 dilution.

    Lane 1: PANC-1 cell lysate (20 µg/Lane)
    Lane 2: HepG2 cell lysate (20 µg/Lane)
    Lane 3: HEK-293 cell lysate (negative) (20 µg/Lane)
    Lane 4: HFF-1 cell lysate (20 µg/Lane)
    Lane 5: Mouse lung tissue lysate (40 µg/Lane)
    Lane 6: Mouse heart tissue lysate (40 µg/Lane)
    Lane 7: Rat heart tissue lysate (40 µg/Lane)

    Predicted band size: 38 kDa
    Observed band size: 35 kDa

    Exposure time: 1 minute; ECL: K1801;

    4-20% SDS-PAGE gel.

    Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ER1802-69) at 1/5,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

  • <span style="font-weight: bold;">☑ Relative expression (RE)</span><br /><br />Immunocytochemistry analysis of HepG2 (positive) and MCF7 (low expression) labeling CTGF with Rabbit anti-CTGF antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/500 dilution.<br /><br />Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CTGF antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/500 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor&trade; 488, <a href="/products/HA1121" style="font-weight: bold;text-decoration: underline;">HA1121</a>) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.<br /><br />Beta tubulin (<a href="/products/HA601187" style="font-weight: bold;text-decoration: underline;">HA601187</a>, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor&trade; 594, <a href="/products/HA1126" style="font-weight: bold;text-decoration: underline;">HA1126</a>) was used as the secondary antibody at 1/1,000 dilution.

    ☑ Relative expression (RE)

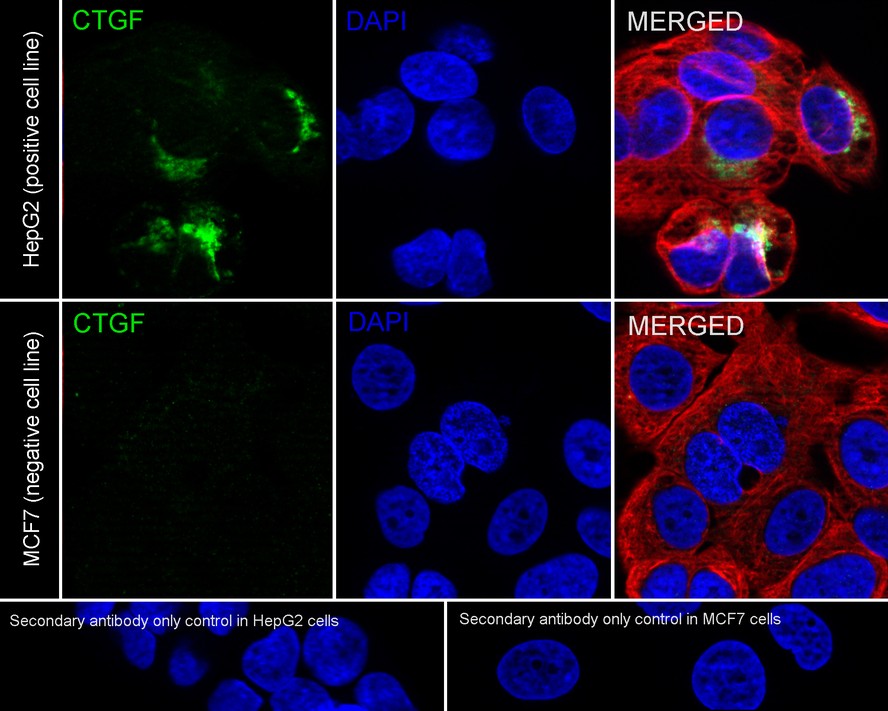

    Immunocytochemistry analysis of HepG2 (positive) and MCF7 (low expression) labeling CTGF with Rabbit anti-CTGF antibody (ER1802-69) at 1/500 dilution.

    Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CTGF antibody (ER1802-69) at 1/500 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

    Beta tubulin (HA601187, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution.

  • Immunohistochemical analysis of paraffin-embedded human heart tissue with Rabbit anti-CTGF antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded human heart tissue with Rabbit anti-CTGF antibody (ER1802-69) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-69) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse heart tissue with Rabbit anti-CTGF antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse heart tissue with Rabbit anti-CTGF antibody (ER1802-69) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-69) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-CTGF antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Rabbit anti-CTGF antibody (ER1802-69) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-69) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat heart tissue with Rabbit anti-CTGF antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/200 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat heart tissue with Rabbit anti-CTGF antibody (ER1802-69) at 1/200 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-69) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

  • Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-CTGF antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/1,000 dilution.<br /><br />The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH<sub>2</sub>O and PBS, and then probed with the primary antibody (<a href="/products/ER1802-69" style="font-weight: bold;text-decoration: underline;">ER1802-69</a>) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue with Rabbit anti-CTGF antibody (ER1802-69) at 1/1,000 dilution.

    The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1802-69) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
