PRODUCT CODE: ET1610-93

NLRP3 Recombinant Rabbit Monoclonal Antibody [SC06-23] (ET1610-93)

  • Recombinant

Applications

  • WB

  • ICC/IF

  • IHC-P

  • IP

  • FC

REACTIVITY

  • Human

  • Mouse

  • Rat

-
+
Cart0
Western blot analysis of NLRP3 on human lung tissue lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1610-93, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
  • Western blot analysis of NLRP3 on human lung tissue lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1610-93, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
  • ICC staining of NLRP3 in Hela cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1610-93, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
  • ICC staining of NLRP3 in HUVEC cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1610-93, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
  • ICC staining of NLRP3 in PMVEC cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1610-93, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
  • Immunohistochemical analysis of paraffin-embedded mouse bladder tissue using anti-NLRP3 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1610-93, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded mouse spleen tissue using anti-NLRP3 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1610-93, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human lung carcinoma tissue using anti-NLRP3 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1610-93, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

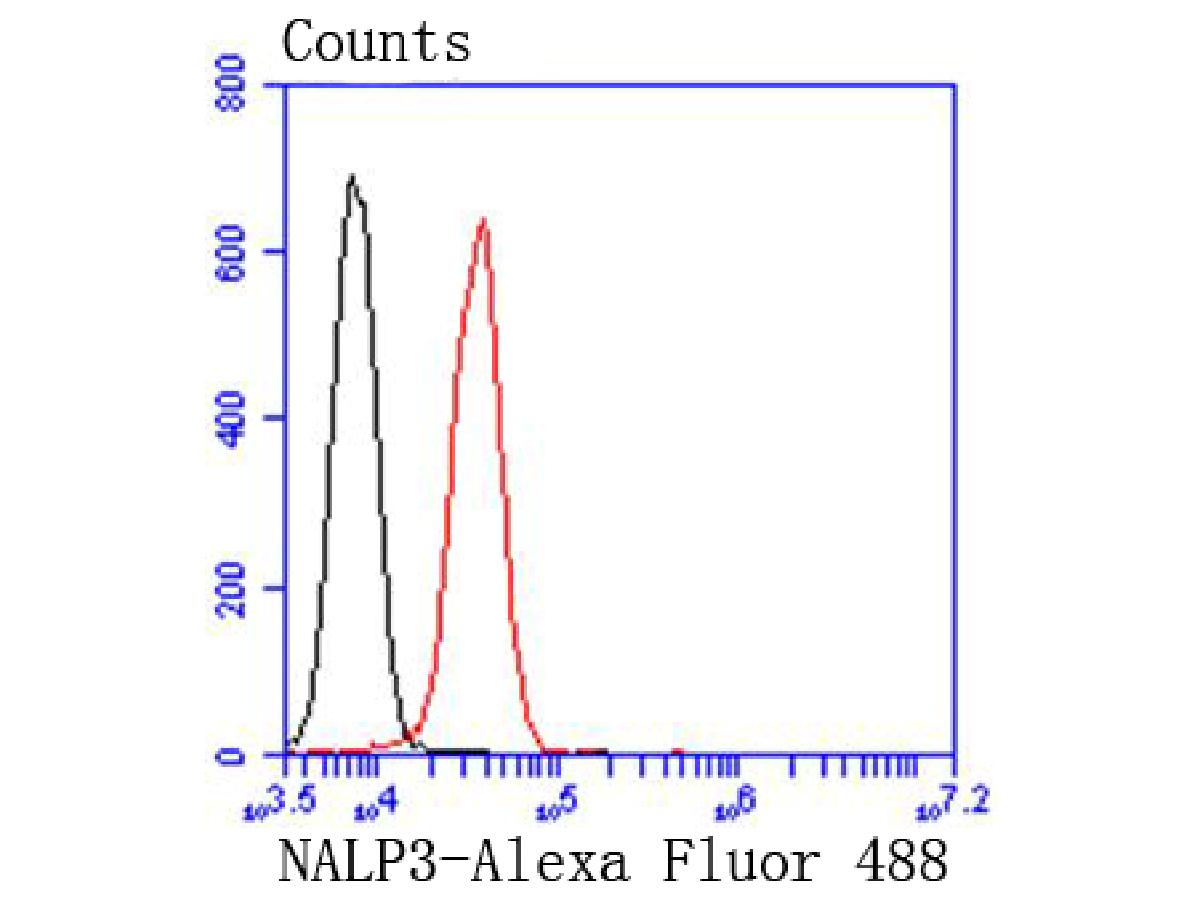

  • Flow cytometric analysis of NLRP3 was done on Jurkat cells. The cells were fixed, permeabilized and stained with the primary antibody (ET1610-93, 1/50) (red). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
  • Immunohistochemical analysis of paraffin-embedded human colon carcinoma tissue with Rabbit anti-NLRP3 antibody (ET1610-93) at 1/400 dilution.<br /> <br /> The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1610-93) at 1/400 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human liver carcinoma tissue with Rabbit anti-NLRP3 antibody (ET1610-93) at 1/100 dilution.<br /> <br /> The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1610-93) at 1/100 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Western blot analysis of NLRP3 on human lung tissue lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1610-93, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

Applications

  • WB

  • ICC/IF

  • IHC-P

  • IP

  • FC

REACTIVITY

  • Human

  • Mouse

  • Rat

SPECIFICATIONS

Product Type

Recombinant Rabbit monoclonal primary

Product Name

NLRP3 Recombinant Rabbit Monoclonal Antibody [SC06-23] (ET1610-93)

Immunogen

Recombinant protein within human nlrp3 aa 5-161 / 1036.

Host

Rabbit

Positive Control

Human lung tissue lysates, Hela, HUVEC, PMVEC, mouse bladder tissue, mouse spleen tissue, human lung carcinoma tissue, Jurkat, human colon carcinoma, human liver carcinoma.

Conjugation

Unconjugated

Clonality

Monoclonal

Clone Number

SC06-23

PROPERTIES

Form

Liquid

Storage Condition

Store at +4C after thawing. Aliquot store at -20C or -80C. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Concentration

1ug/ul

PURIFICATION

Protein A affinity purified.

MOLECULAR WEIGHT

118 kDa (Predicted band size)

Isotype

IgG

APPLICATION DILUTION

  • WB

  • 1:500-1:1,000

  • ICC/IF

  • 1:100-1:500

  • IHC-P

  • 1:50-1:400

  • FC

  • 1:50-1:100

  • IP

  • Use at an assay dependent concentration.

TARGET

UNIPROT #

Q96P20

PROTEIN NAME

NLRP3

SYNONYMS

AGTAVPRL antibody;AII/AVP antibody;Angiotensin/vasopressin receptor AII/AVP like antibody;Angiotensin/vasopressin receptor AII/AVP-like antibody;C1orf7 antibody;Caterpiller protein 1.1 antibody;CIAS 1 antibody;CIAS1 antibody;CLR1.1 antibody;Cold autoinflammatory syndrome 1 antibody;Cold autoinflammatory syndrome 1 protein antibody;Cryopyrin antibody;Familial cold autoinflammatory syndrome antibody;FCAS antibody;FCU antibody;LRR and PYD domains-containing protein 3 antibody;Muckle-Wells syndrome antibody;MWS antibody;NACHT antibody;NACHT LRR and PYD containing protein 3 antibody;NALP 3 antibody;NALP3 antibody;NALP3_HUMAN antibody;NLRP3 antibody;PYPAF 1 antibody;PYPAF1 antibody;PYRIN containing APAF1 like protein 1 antibody;PYRIN-containing APAF1-like protein 1 antibody

SEQUENCE SIMILARITIES

Belongs to the NLRP family.

TISSUE SPECIFICITY

Predominantly expressed in macrophages. Also expressed in dendritic cells, B- and T-cells (at protein level). Expressed in LPS-treated granulocytes, but not in resting cells (at protein level). Expression in monocytes is very weak (at protein level). Expressed in stratified non-keratinizing squamous epithelium, including oral, esophageal and ectocervical mucosa and in the Hassall's corpuscles in the thymus. Also, detected in the stratified epithelium covering the bladder and ureter (transitional mucosa) (at protein level). Expressed in lung epithelial cells (at protein level). Expressed in chondrocytes. Expressed at low levels in resting osteoblasts.

POST-TRANSLATIONAL MODIFICATION

The disulfide bond in the pyrin domain might play a role in reactive oxygen species-mediated activation.; Ubiquitinated; undergoes both 'Lys-48'- and 'Lys-63'-linked polyubiquitination. Ubiquitination does not lead to degradation, but inhibits inflammasome activation (By similarity). Deubiquitination is catalyzed by BRCC3 and associated with NLRP3 activation and inflammasome assembly. This process can be induced by the activation of Toll-like receptors (by LPS), through a non-transcriptional pathway dependent on the mitochondrial production of reactive oxygen species, and by ATP.

SUBCELLULAR LOCATION

Cytoplasm, Inflammasome, Secreted, Nucleus, Endoplasmic reticulum.

FUNCTION

As the sensor component of the NLRP3 inflammasome, plays a crucial role in innate immunity and inflammation. In response to pathogens and other damage-associated signals, initiates the formation of the inflammasome polymeric complex, made of NLRP3, PYCARD and CASP1 (and possibly CASP4 and CASP5). Recruitment of proCASP1 to the inflammasome promotes its activation and CASP1-catalyzed IL1B and IL18 maturation and secretion in the extracellular milieu. Activation of NLRP3 inflammasome is also required for HMGB1 secretion. The active cytokines and HMGB1 stimulate inflammatory responses. Inflammasomes can also induce pyroptosis, an inflammatory form of programmed cell death. Under resting conditions, NLRP3 is autoinhibited. NLRP3 activation stimuli include extracellular ATP, reactive oxygen species, K+ efflux, crystals of monosodium urate or cholesterol, amyloid-beta fibers, environmental or industrial particles and nanoparticles, cytosolic dsRNA, etc. However, it is unclear what constitutes the direct NLRP3 activator. Activation in presence of cytosolic dsRNA is mediated by DHX33. Independently of inflammasome activation, regulates the differentiation of T helper 2 (Th2) cells and has a role in Th2 cell-dependent asthma and tumor growth (By similarity). During Th2 differentiation, required for optimal IRF4 binding to IL4 promoter and for IRF4-dependent IL4 transcription. Binds to the consensus DNA sequence 5'-GRRGGNRGAG-3'. May also participate in the transcription of IL5, IL13, GATA3, CCR3, CCR4 and MAF.

CITATIONS

  • Li, Feng et al.

    AT-533, a Hsp90 inhibitor, attenuates HSV-1-induced inflammation. | Biochemical Pharmacology [2019]

  • Wang, H., Huang, M., Wang, ...

    Microglial TLR4-induced TAK1 phosphorylation and NLRP3 activation mediates neuroinflammation and contributes to chronic morphine-induced antinociceptive tolerance. Pharmacological research, 165, 105482.

  • Tao Xu;Aizhong Wang

    Spinal TLR4/P2X7 Receptor-Dependent NLRP3 Inflammasome Activation Contributes to the Development of Tolerance to Morphine-Induced Antinociception

  • Yi, Xiaowei et al.

    The effect of NLRP inflammasome on the regulation of AGEs-induced inflammatory response in human periodontal ligament cells. | Journal of Periodontal Research [2019]
