CD3G Recombinant Rabbit Monoclonal Antibody [JB38-29]
Catalog# ET7107-55
CD3G Recombinant Rabbit Monoclonal Antibody [JB38-29]
-
WB
-
IHC-P
-
FC
-
IP
-
IF-Cell
-
IF-Tissue
-
Human
-
Mouse
-
unconjugated
Overview
Product Name
CD3G Recombinant Rabbit Monoclonal Antibody [JB38-29]
Antibody Type
Recombinant Rabbit monoclonal Antibody
Immunogen
Synthetic peptide within Human CD3G aa 133-182 / 182.
Species Reactivity
Human, Mouse
Validated Applications
WB, IHC-P, FC, IP, IF-Cell, IF-Tissue
Molecular Weight
Predicted band size: 20 kDa
Positive Control
Jurkat cell lysate, MOLT-4 cell lysate, mouse thymus tissue lysate, human tonsil tissue, human spleen tissue, mouse spleen tissue, mouse thymus tissue, Jurkat.
Conjugation
unconjugated
Clone Number
JB38-29
RRID
Product Features
Form
Liquid
Concentration
Storage Instructions
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Storage Buffer
1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Isotype
IgG
Purification Method
Protein A affinity purified.
Application Dilution
-
WB
-
1:2,000
-
IHC-P
-
1:50-1:800
-
FC
-
1:1,000
-
IP
-
Use at an assay dependent concentration.
-
IF-Cell
-
1:50
-
IF-Tissue
-
1:200
Target
Function
The T cell antigen receptor (TCR) recognizes foreign antigens and translates such recognition events into intracellular signals that elicit a change in the cell from a dormant to an activated state. Much of this signaling process can be attributed to a multisubunit complex of proteins that associates directly with the TCR. This complex has been designated CD3 (cluster of differentiation 3). It is composed of five invariant polypeptide chains that associate to form three dimers: a heterodimer of gamma and epsilon chains (γε), a heterodimer of delta and epsilon chains (δε) and a homodimer of two zeta chains (ζζ) or a heterodimer of zeta and eta chains (ζη). The ζ and η chains are encoded by the same gene but differ in their carboxyl-terminal ends due to an alternative splicing event. The γ, ε and δ chains each contain a single copy of a conserved immunoreceptor tyrosine-based activation motif (ITAM).
Background References
1. Barber E K et al. The CD4 and CD8 antigens are coupled to a protein-tyrosine kinase (p56lck) that phosphorylates the CD3 complex. Proc Natl Acad Sci USA 86:3277-3281 (1989).
2. Dietrich J et al. CD3 gamma contains a phosphoserine-dependent di-leucine motif involved in down-regulation of the T cell receptor. EMBO J 13:2156-2166 (1994).
Post-translational Modification
Phosphorylated on Tyr residues after T-cell receptor triggering by LCK in association with CD4/CD8. Phosphorylated also by PKC; leading to the TCR complex down-regulation.; Phosphorylated on Tyr residues after T-cell receptor triggering by LCK in association with CD4/CD8.
Subcellular Location
Cell membrane.
Synonyms
CD3 gamma antibody
CD3-GAMMA antibody
CD3g antibody
CD3g antigen gamma polypeptide (TiT3 complex) antibody
CD3g antigen gamma polypeptide antibody
CD3g molecule gamma (CD3 TCR complex) antibody
CD3g molecule gamma antibody
CD3G_HUMAN antibody
FLJ17620 antibody
FLJ17664 antibody
ExpandImages
-

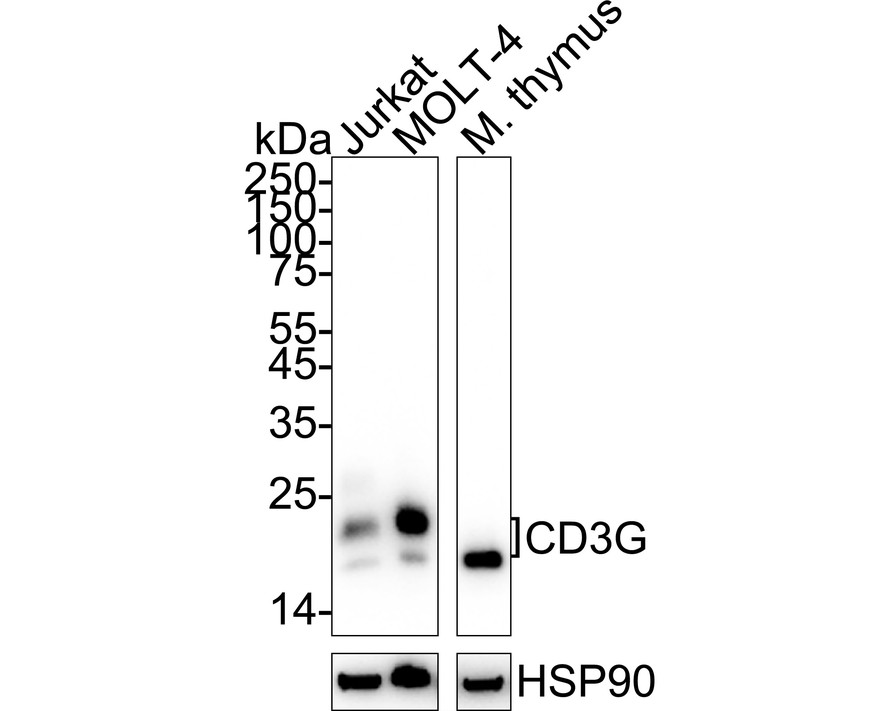

Western blot analysis of CD3G on different lysates with Rabbit anti-CD3G antibody (ET7107-55) at 1/2,000 dilution.
Lane 1: Jurkat cell lysate
Lane 2: MOLT-4 cell lysate
Lane 3: Mouse thymus tissue lysate
Lysates/proteins at 20 µg/Lane.
Predicted band size: 20 kDa
Observed band size: 17/20 kDa
Exposure time: 6 seconds; ECL: K1801;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET7107-55) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature. -
Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-CD3G antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-55, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
-
Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-CD3G antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-55, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
-
Immunohistochemical analysis of paraffin-embedded mouse spleen tissue with Rabbit anti-CD3G antibody (ET7107-55) at 1/800 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-55) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunohistochemical analysis of paraffin-embedded mouse thymus tissue with Rabbit anti-CD3G antibody (ET7107-55) at 1/800 dilution.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET7107-55) at 1/800 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunocytochemistry analysis of Jurkat cells labeling CD3G with Rabbit anti-CD3G antibody (ET7107-55) at 1/50 dilution.
Cells were fixed in 4% paraformaldehyde for 15 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 15 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CD3G antibody (ET7107-55) at 1/50 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
Beta tubulin (M1305-2, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594, HA1126) was used as the secondary antibody at 1/1,000 dilution. -

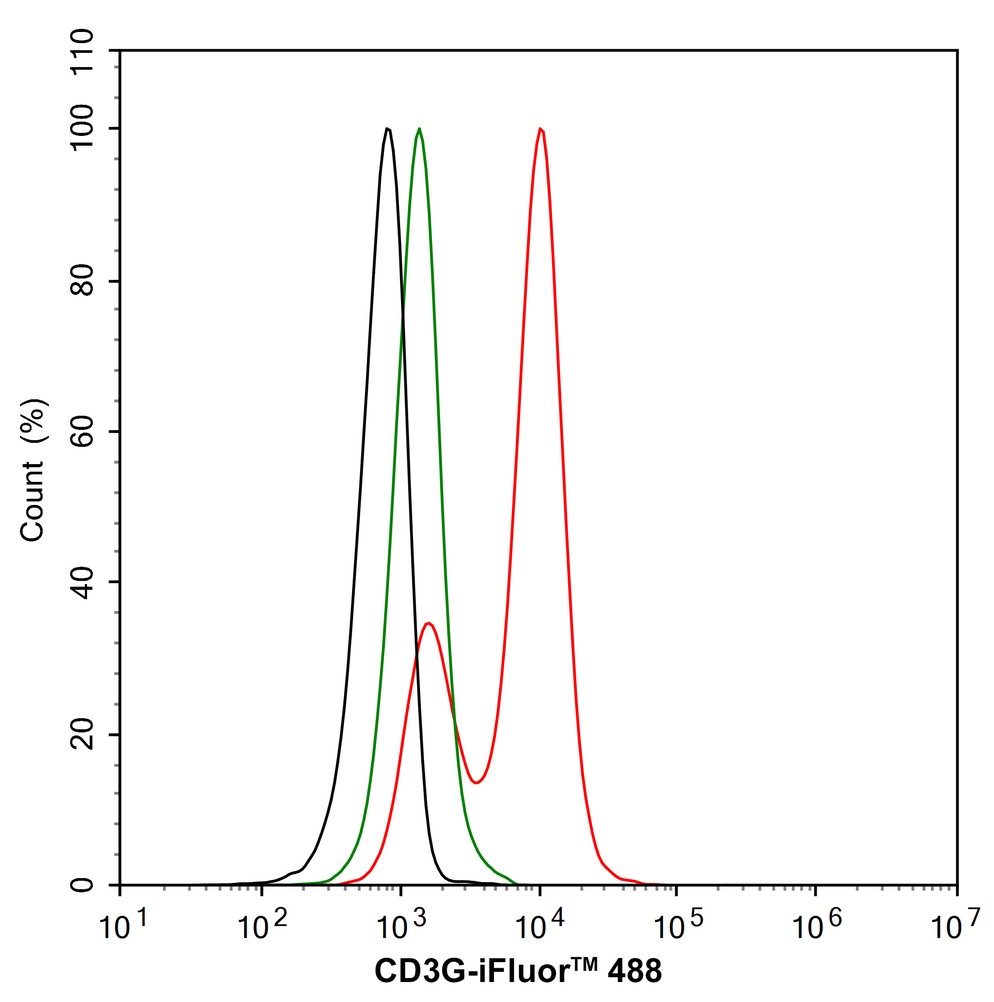

Flow cytometric analysis of Jurkat cells labeling CD3G.
Cells were fixed and permeabilized. Then stained with the primary antibody (ET7107-55, 1/1,000) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody (HA1121) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). -
Application: IF-Tissue
Species: Mouse
Site: Spleen
Sample: Paraffin-embedded section
Antibody concentration: 1/200
Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
