EFTUD2 Mouse Monoclonal Antibody [1-D10-A1]
Catalog# M1510-3
EFTUD2 Mouse Monoclonal Antibody [1-D10-A1]
-
WB
-
IF-Cell
-
IHC-P
-
FC
-
IF-Tissue
-
Human
-
Mouse
-
Rat
-
unconjugated
Overview
Product Name
EFTUD2 Mouse Monoclonal Antibody [1-D10-A1]
Antibody Type
Mouse Monoclonal Antibody
Immunogen
Synthetic peptide within mouse Eftud2 aa 1-50 / 972.
Species Reactivity
Human, Mouse, Rat
Validated Applications
WB, IF-Cell, IHC-P, FC, IF-Tissue
Molecular Weight
Predicted band size: 109 kDa
Positive Control
HeLa cell lysate, Jurkat cell lysate, HEK-293 cell lysate, U-87 MG cell lysate, LNCaP cell lysate, HepG2 cell lysate, K-562 cell lysate, C6 cell lysate, PC-12 cell lysate, NIH/3T3 cell lysate, RAW264.7 cell lysate, mouse testis tissue lysate, mouse kidney tissue lysate, rat brain tissue lysate, HeLa, human breast cancer tissue, human colon cancer tissue, human colon tissue, human ovary cancer tissue, mouse kidney tissue, mouse testis tissue, rat testis tissue, NIH/3T3.
Conjugation
unconjugated
Clone Number
1-D10-A1
RRID
Product Features
Form
Liquid
Concentration
Storage Instructions
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Storage Buffer
1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.
Isotype
IgG1
Purification Method
Protein A affinity purified.
Application Dilution
-
WB
-
1:2,000
-
IF-Cell
-
1:500
-
IHC-P
-
1:2,000
-
IF-Tissue
-
1:500
-
FC
-
1:1,000
Target
Function
Spliceosomes are multi-protein complexes that are composed of snRNPs (small nuclear ribonucleoproteins) and a variety of associated protein factors, all of which work in concert to regulate the splicing of pre-mRNA. Snrp116, also known as EFTUD2 (elongation factor Tu GTP binding domain containing 2) or Snu114, is a 972 amino acid protein that localizes to the nucleus and belongs to the GTP-binding elongation factor family. Existing as a component of the multi-protein U5 snRNP spliceosome complex, Snrp116 plays an important role in pre-mRNA splicing, as well as in the recycling of spliceosomal snRNPs. The gene encoding Snrp116 maps to human chromosome 17, which comprises over 2.5% of the human genome and encodes over 1,200 genes.
Background References
1. Bian Y., Song C., Cheng K., et al. An enzyme assisted RP-RPLC approach for in-depth analysis of human liver phosphoproteome. J. Proteomics 96:253-262(2014).
2. Horejsi Z., Stach L., Flower T.G., et al. Phosphorylation-dependent PIH1D1 interactions define substrate specificity of the R2TP cochaperone complex. Cell Rep. 7:19-26(2014).
Sequence Similarity
Belongs to the TRAFAC class translation factor GTPase superfamily. Classic translation factor GTPase family. EF-G/EF-2 subfamily.
Subcellular Location
Nucleus.
Synonyms
116 kDa antibody
116 kDa U5 small nuclear ribonucleoprotein component antibody
EFTUD2 antibody
Elongation factor Tu GTP binding domain containing 2 antibody
Elongation factor Tu GTP-binding domain-containing protein 2 antibody
hSNU114 antibody
MFDGA antibody
MFDM antibody
SNRNP116 antibody
Snrp116 antibody
ExpandImages
-

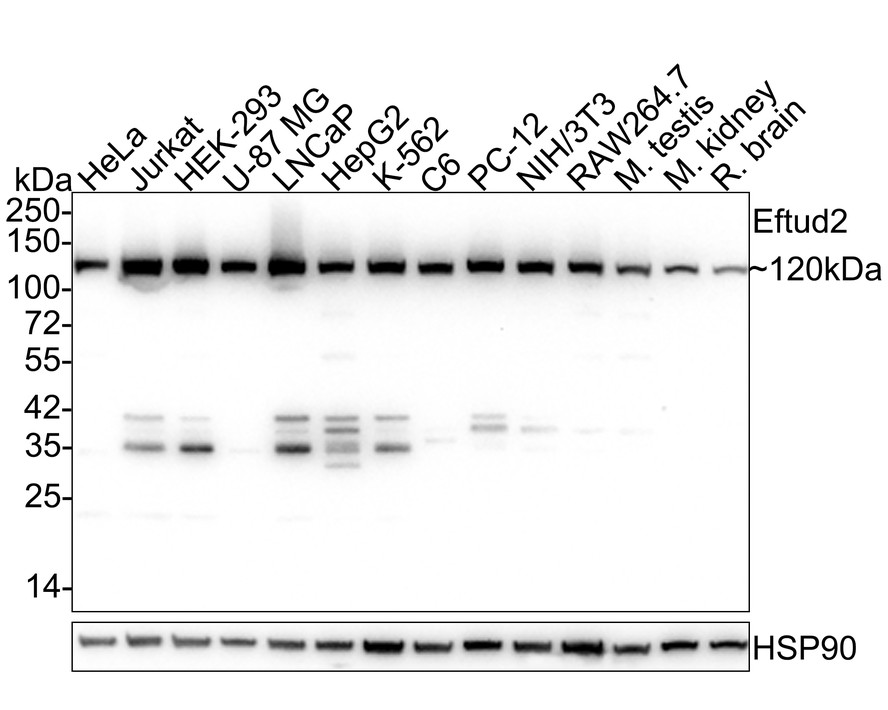

Western blot analysis of EFTUD2 on different lysates with Mouse anti-EFTUD2 antibody (M1510-3) at 1/2,000 dilution.
Lane 1: HeLa cell lysate
Lane 2: Jurkat cell lysate
Lane 3: HEK-293 cell lysate
Lane 4: U-87 MG cell lysate
Lane 5: LNCaP cell lysate
Lane 6: HepG2 cell lysate
Lane 7: K-562 cell lysate
Lane 8: C6 cell lysate
Lane 9: PC-12 cell lysate
Lane 10: NIH/3T3 cell lysate
Lane 11: RAW264.7 cell lysate
Lane 12: Mouse testis tissue lysate
Lane 13: Mouse kidney tissue lysate
Lane 14: Rat brain tissue lysate
Lysates/proteins at 20 µg/Lane.
Predicted band size: 109 kDa
Observed band size: 120 kDa
Exposure time: 10 seconds;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (M1510-3) at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody (HA1006) at 1/50,000 dilution was used for 1 hour at room temperature. -
Immunohistochemical analysis of paraffin-embedded human breast cancer tissue with Mouse anti-EFTUD2 antibody (M1510-3) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (M1510-3) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunohistochemical analysis of paraffin-embedded human colon cancer tissue with Mouse anti-EFTUD2 antibody (M1510-3) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (M1510-3) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunohistochemical analysis of paraffin-embedded human colon tissue with Mouse anti-EFTUD2 antibody (M1510-3) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (M1510-3) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunohistochemical analysis of paraffin-embedded human ovary cancer tissue with Mouse anti-EFTUD2 antibody (M1510-3) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (M1510-3) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunohistochemical analysis of paraffin-embedded mouse kidney tissue with Mouse anti-EFTUD2 antibody (M1510-3) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (M1510-3) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunohistochemical analysis of paraffin-embedded mouse testis tissue with Mouse anti-EFTUD2 antibody (M1510-3) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (M1510-3) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunohistochemical analysis of paraffin-embedded rat testis tissue with Mouse anti-EFTUD2 antibody (M1510-3) at 1/2,000 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (M1510-3) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX. -
Immunofluorescence analysis of paraffin-embedded human breast cancer tissue labeling EFTUD2 with Mouse anti-EFTUD2 antibody (M1510-3) at 1/500 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (M1510-3, green) at 1/500 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Mouse IgG H&L (iFluor™ 488, HA1125) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue). -
Immunofluorescence analysis of paraffin-embedded rat testis tissue labeling EFTUD2 with Mouse anti-EFTUD2 antibody (M1510-3) at 1/500 dilution.
The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) (high pressure) for 2 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (M1510-3, green) at 1/500 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Mouse IgG H&L (iFluor™ 488, HA1125) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue). -
Immunocytochemistry analysis of HeLa cells labeling EFTUD2 with Mouse anti-EFTUD2 antibody (M1510-3) at 1/500 dilution.
Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Mouse anti-EFTUD2 antibody (M1510-3) at 1/500 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor™ 488, HA1125) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
beta Tubulin (ET1602-4, red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Rabbit IgG H&L (iFluor™ 594, HA1122) were used as the secondary antibody at 1/1,000 dilution. -

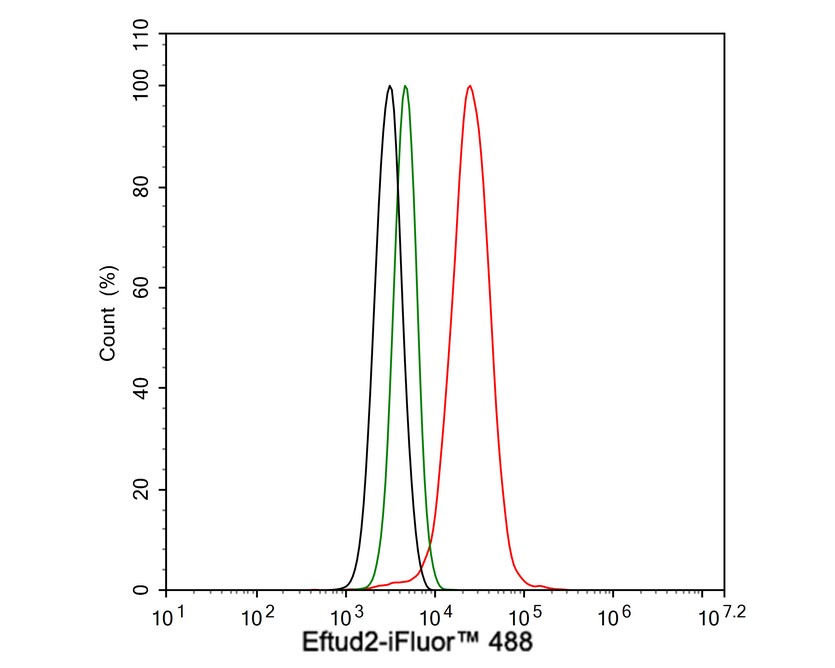

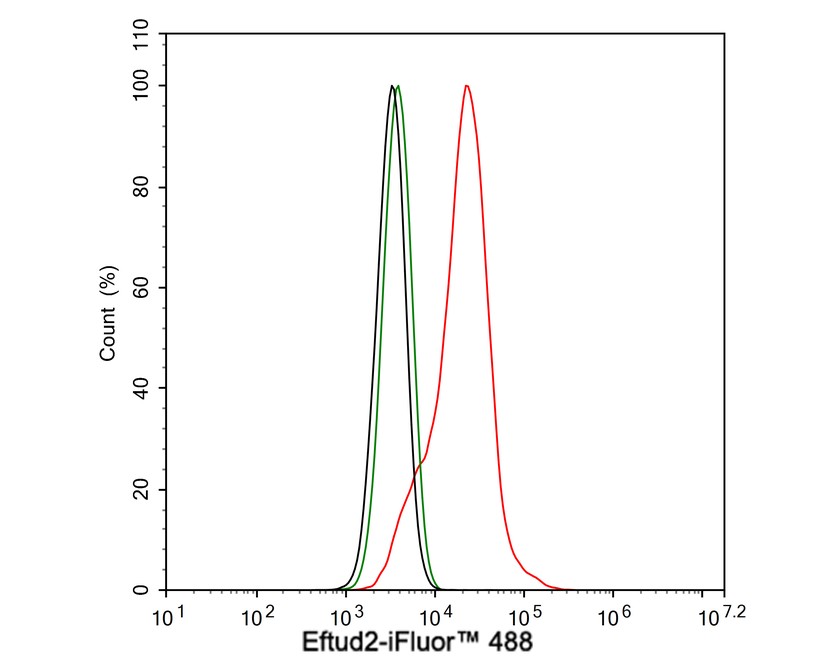

Flow cytometric analysis of HeLa cells labeling EFTUD2.
Cells were fixed and permeabilized. Then stained with the primary antibody (M1510-3, 1μg/mL) (red) compared with Mouse IgG1 Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Mouse IgG Secondary antibody (HA1125) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black). -
Flow cytometric analysis of NIH/3T3 cells labeling EFTUD2.
Cells were fixed and permeabilized. Then stained with the primary antibody (M1510-3, 1μg/mL) (red) compared with Mouse IgG1 Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Mouse IgG Secondary antibody (HA1125) at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
