CNGA4 Rabbit Polyclonal Antibody
Catalog# ER1901-88
CNGA4 Rabbit Polyclonal Antibody
-
WB
-
IF-Cell
-
FC
-
Human
-
Mouse
-
Rat
-
unconjugated
Overview
Product Name
CNGA4 Rabbit Polyclonal Antibody
Antibody Type
Rabbit Polyclonal Antibody
Immunogen
Synthetic peptide within rat CNGA4 aa 1-50 / 575.
Species Reactivity
Human, Mouse, Rat
Validated Applications
WB, IF-Cell, FC
Target Molecular Weight
Predicted band size 65 kDa
Positive Control
A549 cell lysate, A431 cell lysate, human brain tissue lysate, SHSY5Y cell lysate, N2A, SHSY5Y, Hela.
Conjugation
unconjugated
RRID
Product Features
Form
Liquid
Concentration
1 mg/ml.(The concentration of this product may be batch-dependent)
Storage Instructions
Shipped at 4℃. Store at +4℃ short term (1-2 weeks). It is recommended to aliquot into single-use upon delivery. Store at -20℃ long term.
Storage Buffer
1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.
Isotype
IgG
Purification Method
Immunogen affinity purified.
Application Dilution
-
WB
-
1:500-1:1000
-
IF-Cell
-
1:50-1:200
-
FC
-
1:50-1:100
Target
Function
Second messenger, cAMP, causes the opening of cation-selective cyclic nucleotide-gated (CNG) channels and depolarization of the neuron (olfactory sensory neurons, OSNs). CNGA4 is the modulatory subunit of this channel which is known to play a central role in the transduction of odorant signals and subsequent adaptation. By accelerating the calcium-mediated negative feedback in olfactory signaling it allows rapid adaptation to odor stimulation and extends its range of odor detection. When heterologously expressed all subunits with exception of CNGA4, CNGB1 and CNGB3 can form functional homomeric channels. In olfactory sensory neurons, CNG channels which are formed by two CNGA2, one CNGA4 subunits and an isoform of CNGB1, are activated by the binding of cAMP, whose levels increase in response to the binding of odorant molecules to their respective receptors. These channels are highly expressed in retinal photoreceptors and olfactory neurons where their role has been extensively studied. CNG channels have also been detected in brain, testis and kidney although their role in these tissues has yet to be unraveled.
Background References
1. Brady J D et al. Interplay between PIP3 and calmodulin regulation of olfactory cyclic nucleotide-gated channels. Proc Natl Acad Sci USA 103:15635-15640 (2006).
Sequence Similarity
Belongs to the cyclic nucleotide-gated cation channel (TC 1.A.1.5) family. CNGA4 subfamily.
Subcellular Location
Membrane.
Synonyms
Cyclic nucleotide-gated cation channel alpha-4 antibody
Cyclic nucleotide-gated channel alpha-4 antibody
CNG channel alpha-4 antibody
CNG-4 antibody
CNG4 antibody
Cnga4 antibody
Cyclic nucleotide-gated olfactory channel subunit OCNC2 antibody
CNG4 antibody
Images
-

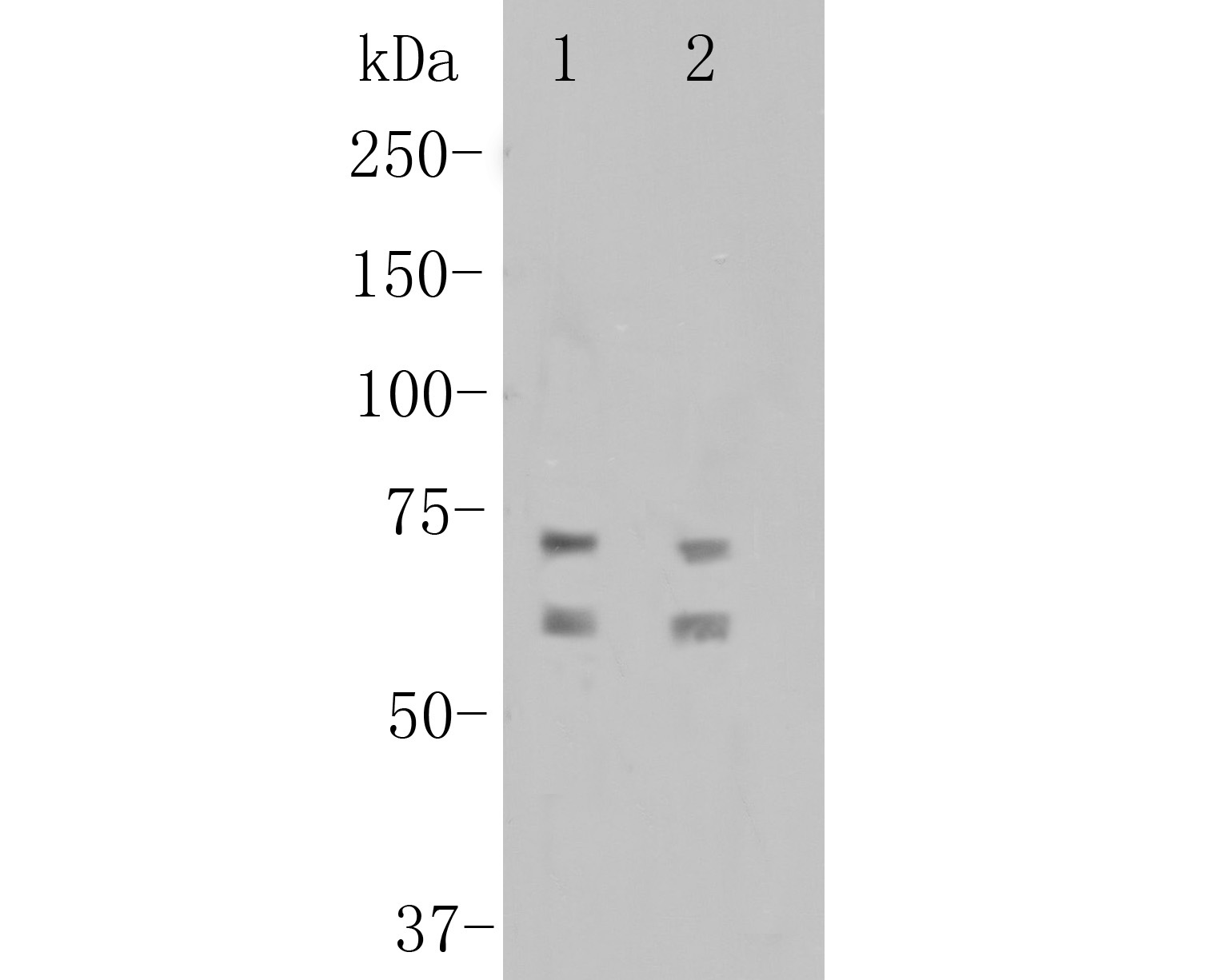

Western blot analysis of CNGA4 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-88, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
Positive control:
Lane 1: A549 cell lysate
Lane 2: A431 cell lysate -

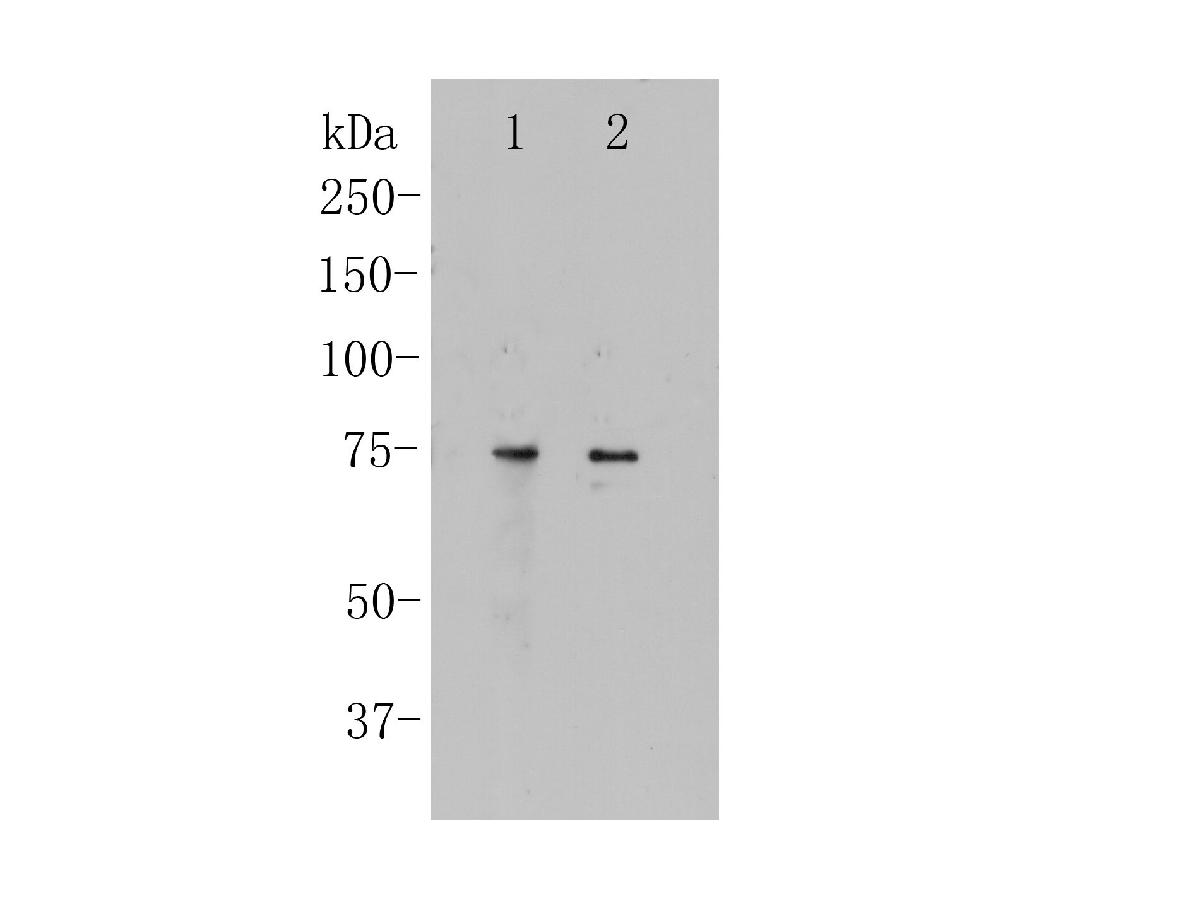

Western blot analysis of CNGA4 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-88, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
Positive control:
Lane 1: Human brain tissue lysate
Lane 2: SHSY5Y cell lysate -
ICC staining of CNGA4 in N2A cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ER1901-88, 1/100) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).
-
ICC staining of CNGA4 in SHSY5Y cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ER1901-88, 1/100) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).
-

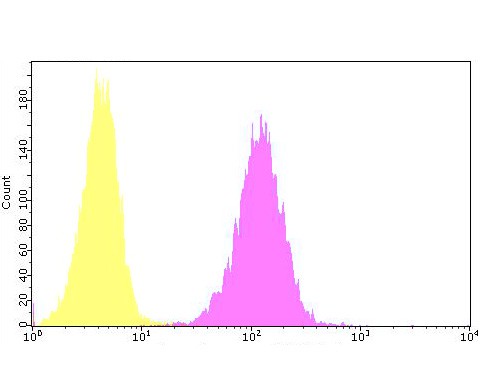

Flow cytometric analysis of CNGA4 was done on Hela cells. The cells were fixed, permeabilized and stained with the primary antibody (ER1901-88, 1/100) (yellow). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated goat anti-rabbit IgG Secondary antibody at 1/500 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; purple).
Please note: All products are "FOR RESEARCH USE ONLY AND ARE NOT INTENDED FOR DIAGNOSTIC OR THERAPEUTIC USE"
