PRODUCT CODE: ET1609-57

Recombinant PIM1 Monoclonal Antibody (ET1609-57)

  • Recombinant

Applications

  • WB

  • ICC

  • IF

  • IHC-P

REACTIVITY

  • Human

  • Mouse

-
+

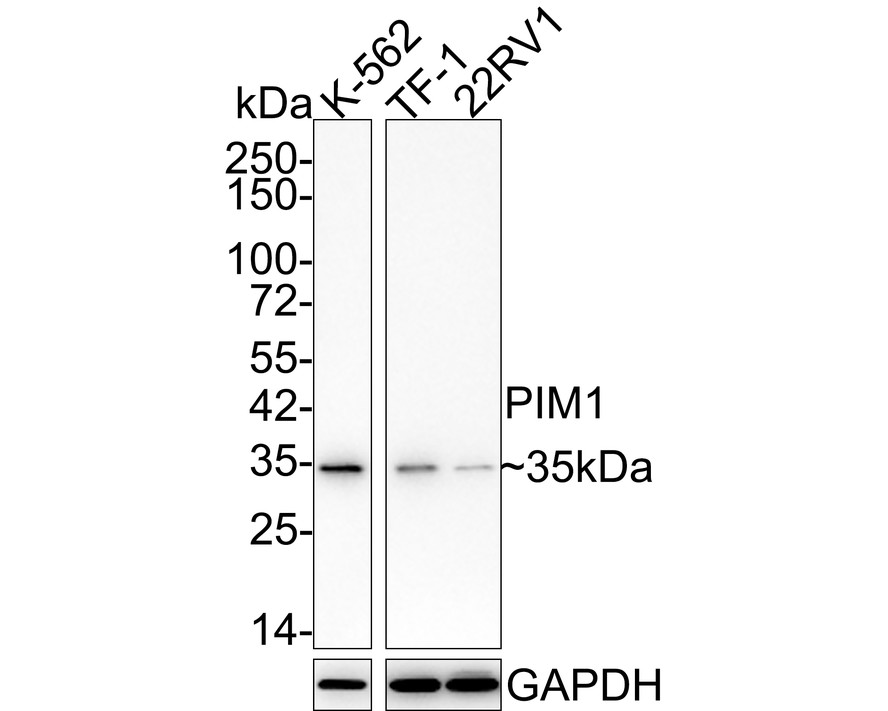

Western blot analysis of PIM1 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1609-57, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.<br />
 Positive control: <br />
 Lane 1: BT-20 cell lysate<br />
 Lane 2: HepG2 cell lysate<br />
 Lane 3: SW480 cell lysate
  • Western blot analysis of PIM1 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1609-57, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.<br />
 Positive control: <br />
 Lane 1: BT-20 cell lysate<br />
 Lane 2: HepG2 cell lysate<br />
 Lane 3: SW480 cell lysate
  • ICC staining of PIM1 in BT-20 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1609-57, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
  • ICC staining of PIM1 in HepG2 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1609-57, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
  • ICC staining of PIM1 in SW480 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ET1609-57, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/1,000 dilution. The nuclear counter stain is DAPI (blue).
  • Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-PIM1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1609-57, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human colon carcinoma tissue using anti-PIM1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1609-57, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-PIM1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1609-57, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue using anti-PIM1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ET1609-57, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Western blot analysis of PIM1 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ET1609-57, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
Positive control:
Lane 1: BT-20 cell lysate
Lane 2: HepG2 cell lysate
Lane 3: SW480 cell lysate

Applications

  • WB

  • ICC

  • IF

  • IHC-P

REACTIVITY

  • Human

  • Mouse

SPECIFICATIONS

Product Type

Recombinant Rabbit monoclonal primary

Product Name

Recombinant PIM1 Monoclonal Antibody (ET1609-57)

Immunogen

Recombinant protein

Host

Rabbit

Positive Control

BT-20 cell lysate, HepG2 cell lysate, SW480 cell lysate, BT-20, HepG2, SW480, human tonsil tissue, human colon carcinoma tissue, human spleen tissue, human breast carcinoma tissue.

Conjugation

Unconjugated

Clonality

Monoclonal

Clone Number

ST0513

PROPERTIES

Form

Liquid

Storage Condition

Store at +4C after thawing. Aliquot store at -20C or -80C. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*TBS (pH7.4), 0.05% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Concentration

1 ug/ul

PURIFICATION

Protein A affinity purified.

MOLECULAR WEIGHT

32 kDa

Isotype

IgG

APPLICATION DILUTION

  • WB

  • 1:1,000-1:2,000

  • ICC/IF

  • 1:50-1:200

  • IHC-P

  • 1:50-1:200

TARGET

UNIPROT #

PROTEIN NAME

PIM1

SYNONYMS

Oncogene PIM 1 antibody; Oncogene PIM1 antibody; PIM 1 antibody; pim 1 kinase 44 kDa isoform antibody; Pim 1 kinase antibody; pim 1 oncogene (proviral integration site 1) antibody; Pim 1 oncogene antibody; PIM antibody; PIM1 antibody; pim1 kinase 44 kDa isoform antibody; PIM1_HUMAN antibody; Pim2 antibody; PIM3 antibody; Proto oncogene serine/threonine protein kinase Pim 1 antibody; Proto-oncogene serine/threonine-protein kinase Pim-1 antibody; Proviral integration site 1 antibody; Proviral integration site 2 antibody

SEQUENCE SIMILARITIES

Belongs to the protein kinase superfamily. CAMK Ser/Thr protein kinase family. PIM subfamily.

TISSUE SPECIFICITY

Expressed primarily in cells of the hematopoietic and germline lineages. Isoform 1 and isoform 2 are both expressed in prostate cancer cell lines.

POST-TRANSLATIONAL MODIFICATION

Autophosphorylated on both serine/threonine and tyrosine residues. Phosphorylated. Interaction with PPP2CA promotes dephosphorylation.; Ubiquitinated, leading to proteasomal degradation.

SUBCELLULAR LOCATION

Cytoplasm, Nucleus, Cell membrane.

FUNCTION

Pim-1 is a serine/threonine kinase that cooperates with c-Myc in lymphoid cell transformation. The expression of pim-1 increases during the progression from early to late G1, remaining high at the G1/S boundary and G2 phases of the cell cycle. Pim-1 is regulated at both the transcriptional and translational level, and it has been shown to be induced by IL-2 stimulation. Pim-1 also plays a role in T cell differentiation, and it has been shown to stimulate c-Myc-mediated apoptosis upstream of caspase-3-like proteases.
