PRODUCT CODE: ER1803-93

Connexin 45 / GJA7 / Cx45 Antibody (ER1803-93)

Applications

  • WB

  • ICC

  • IHC-P

REACTIVITY

  • Human

  • Mouse

  • Rat

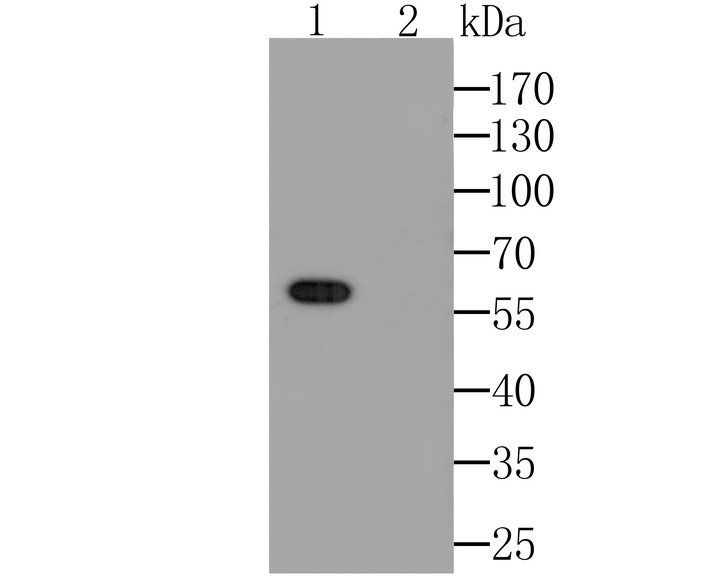

Western blot analysis of Connexin 45 / GJA7 / Cx45 on SH-SY5Y cell lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody was used at a 1:1,000 dilution in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.<br />
<br />
Lane 1: Anti-Connexin-45 Antibody;<br />
Lane 2: Anti-Connexin-45 Antibody, pre-incubated with the <br />
immunizaiton peptide.
  • Western blot analysis of Connexin 45 / GJA7 / Cx45 on SH-SY5Y cell lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody was used at a 1:1,000 dilution in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.<br />
<br />
Lane 1: Anti-Connexin-45 Antibody;<br />
Lane 2: Anti-Connexin-45 Antibody, pre-incubated with the <br />
immunizaiton peptide.
  • ICC staining Connexin 45 in SH-SY5Y cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with Connexin 45 antibody at a dilution of 1:100 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Mouse IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).
  • ICC staining Connexin 45 in A431 cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with Connexin 45 antibody at a dilution of 1:100 for 1 hour at room temperature, washed with PBS. Alexa Fluorc™ 488 Goat anti-Mouse IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).
  • Immunohistochemical analysis of paraffin-embedded rat uterus tissue using anti-Connexin 45 / GJA7 / Cx45 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ER1803-93) at 1/50 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. Counter stained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human liver cancer tissue using anti-Connexin 45 / GJA7 / Cx45 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ER1803-93) at 1/50 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. Counter stained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human kidney tissue using anti-Connexin 45 / GJA7 / Cx45 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ER1803-93) at 1/50 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. Counter stained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human placenta tissue using anti-Connexin 45 / GJA7 / Cx45 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the antibody (ER1803-93) at 1/50 dilution, for 30 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. Counter stained with hematoxylin and mounted with DPX.
Western blot analysis of Connexin 45 / GJA7 / Cx45 on SH-SY5Y cell lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody was used at a 1:1,000 dilution in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

Lane 1: Anti-Connexin-45 Antibody;
Lane 2: Anti-Connexin-45 Antibody, pre-incubated with the
immunizaiton peptide.

Applications

  • WB

  • ICC

  • IHC-P

REACTIVITY

  • Human

  • Mouse

  • Rat

SPECIFICATIONS

Product Type

Rabbit polyclonal primary

Product Name

Connexin 45 / GJA7 / Cx45 Antibody (ER1803-93)

Immunogen

Recombinant protein within human connexin 45 aa 280-410.

Host

Rabbit

Positive Control

SH-SY5Y, A431, rat uterus tissue, human liver cancer tissue, human kidney tissue, human placenta tissue.

Conjugation

Unconjugated

Clonality

Polyclonal

PROPERTIES

Form

Liquid

Storage Condition

Store at +4C after thawing. Aliquot store at -20C. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Concentration

1 ug/ul

PURIFICATION

Protein affinity purified.

MOLECULAR WEIGHT

Predicted band size: 45 kDa

Isotype

IgG

APPLICATION DILUTION

  • WB:1:500-1:1000

  • ICC:1:500-1:100

  • IHC-P:1:50-1:100

TARGET

UNIPROT #

PROTEIN NAME

Gap junction gamma-1 protein

GENE NAME

GJC1

SYNONYMS

Cx45, GJC1, GJA7

SEQUENCE SIMILARITIES

Belongs to the connexin family. Gamma-type subfamily.

SUBCELLULAR LOCATION

Cell membrane; Multi-pass membrane protein. Cell junction, gap junction.

FUNCTION

One gap junction consists of a cluster of closely packed pairs of transmembrane channels, the connexons, through which materials of low MW diffuse from one cell to a neighboring cell.
