PRODUCT CODE: ER1901-88

CNGA4 Antibody (ER1901-88)

Applications

  • WB

  • ICC

  • FC

REACTIVITY

  • Human

  • Mouse

  • Rat

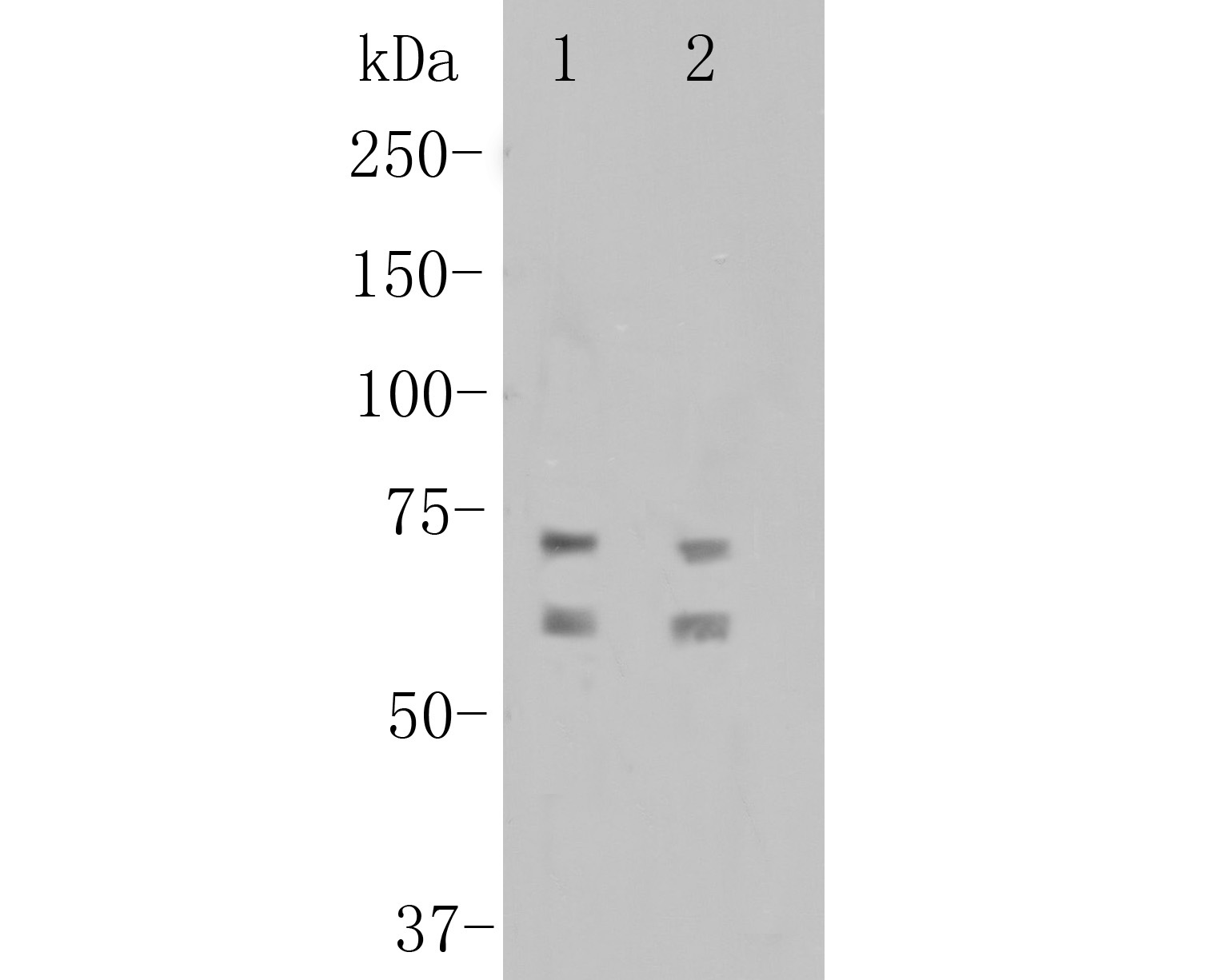

Western blot analysis of CNGA4 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-88, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.<br />
Positive control: <br />
Lane 1: Human brain tissue lysate<br />
Lane 2: SHSY5Y cell lysate
  • Western blot analysis of CNGA4 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-88, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.<br />
Positive control: <br />
Lane 1: Human brain tissue lysate<br />
Lane 2: SHSY5Y cell lysate
  • ICC staining of CNGA4 in N2A cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ER1901-88, 1/100) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).
  • ICC staining of CNGA4 in SHSY5Y cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ER1901-88, 1/100) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).

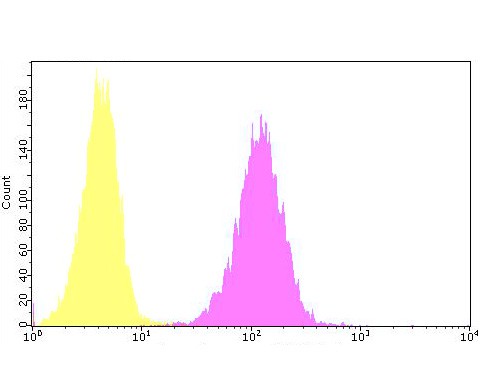

  • Flow cytometric analysis of CNGA4 was done on Hela cells. The cells were fixed, permeabilized and stained with the primary antibody (ER1901-88, 1/100) (yellow). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated goat anti-rabbit IgG Secondary antibody at 1/500 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; purple).

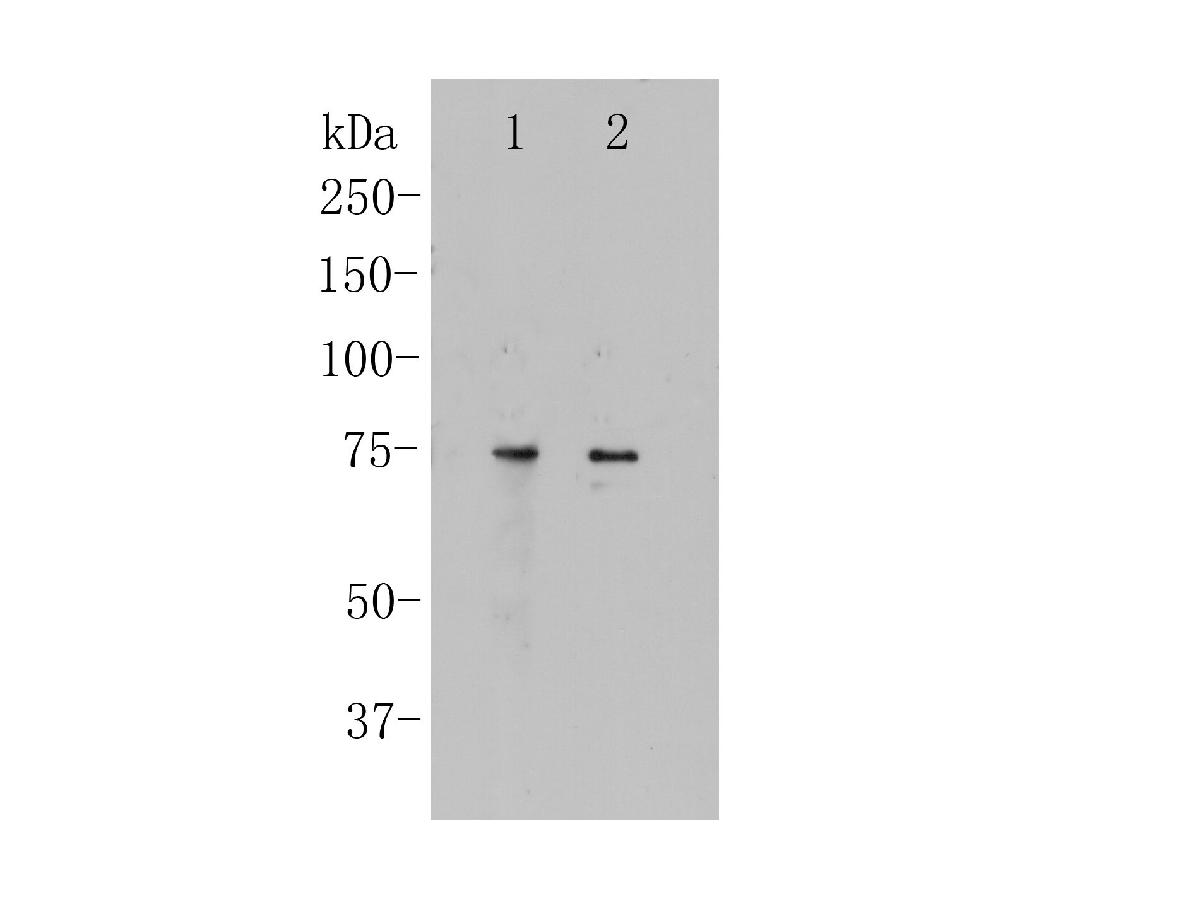

Western blot analysis of CNGA4 on different lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-88, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
Positive control:
Lane 1: Human brain tissue lysate
Lane 2: SHSY5Y cell lysate

Applications

  • WB

  • ICC

  • FC

REACTIVITY

  • Human

  • Mouse

  • Rat

SPECIFICATIONS

Product Type

Rabbit polyclonal primary

Product Name

CNGA4 Antibody (ER1901-88)

Immunogen

Synthetic peptide corresponding to n terminal rat cnga4.

Host

Rabbit

Positive Control

A549 cell lysate, A431 cell lysate, human brain tissue lysate, SHSY5Y cell lysate, N2A, SHSY5Y, Hela.

Conjugation

Unconjugated

Clonality

Polyclonal

PROPERTIES

Form

Liquid

Storage Condition

Store at +4C after thawing. Aliquot store at -20C. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Concentration

1 ug/ul

PURIFICATION

Peptide affinity purified.

MOLECULAR WEIGHT

Predicted band size 65 kDa.

Isotype

IgG

APPLICATION DILUTION

  • WB

  • 1:500-1:1000

  • ICC

  • 1:50-1:200

  • FC

  • 1:50-1:100

TARGET

UNIPROT #

PROTEIN NAME

Cyclic nucleotide-gated cation channel alpha-4

GENE NAME

CNGA4

SYNONYMS

Cyclic nucleotide-gated cation channel alpha-4, Cyclic nucleotide-gated channel alpha-4, CNG channel alpha-4, CNG-4, CNG4. Cyclic nucleotide-gated olfactory channel subunit OCNC2, Cnga4

SEQUENCE SIMILARITIES

Belongs to the cyclic nucleotide-gated cation channel (TC 1.A.1.5) family. CNGA4 subfamily.

SUBCELLULAR LOCATION

Membrane; Multi-pass membrane protein.

FUNCTION

Second messenger, cAMP, causes the opening of cation-selective cyclic nucleotide-gated (CNG) channels and depolarization of the neuron (olfactory sensory neurons, OSNs). CNGA4 is the modulatory subunit of this channel which is known to play a central role in the transduction of odorant signals and subsequent adaptation. By accelerating the calcium-mediated negative feedback in olfactory signaling it allows rapid adaptation to odor stimulation and extends its range of odor detection (By similarity).
