PRODUCT CODE: ER80501

CD3 epsilon Antibody (ER80501)

Applications

  • WB

  • ICC

  • IHC-P

  • FC

REACTIVITY

  • Human

  • Mouse

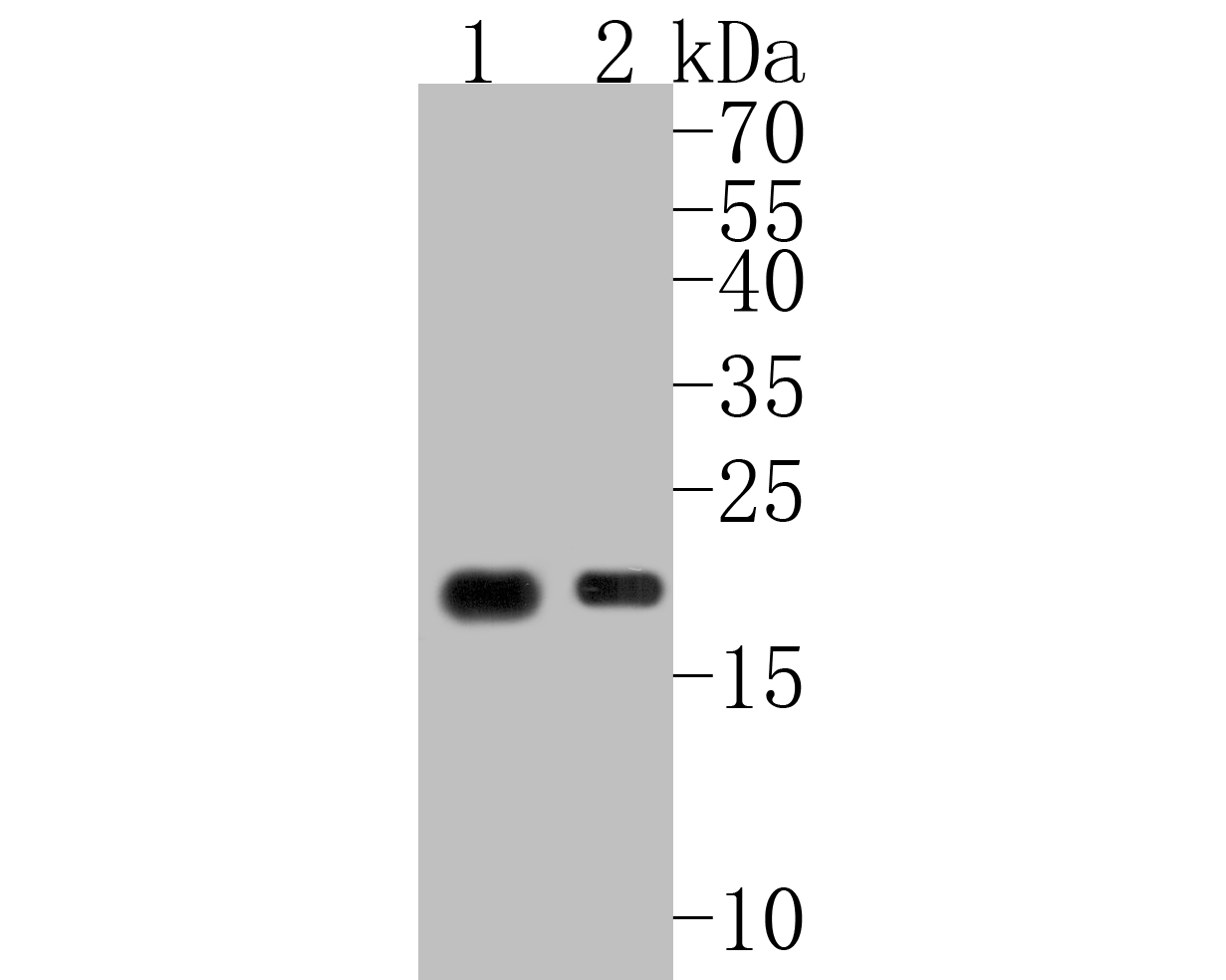

Western blot analysis of CD3E on different cell lysates using anti-CD3E antibody at 1/1000 dilution.

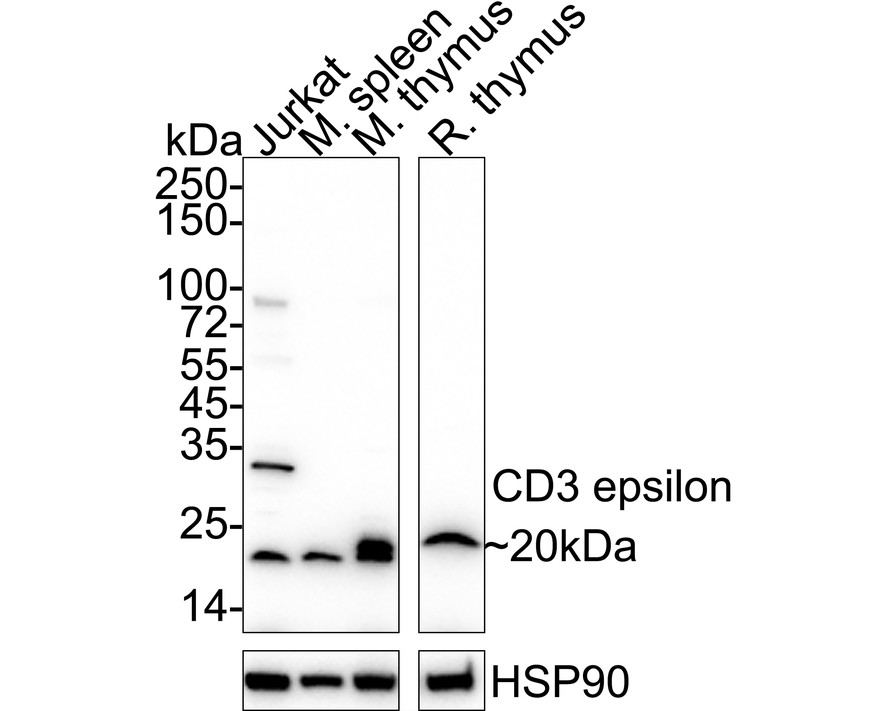

  • Western blot analysis of CD3E on different cell lysates using anti-CD3E antibody at 1/1000 dilution.
  • ICC staining CD3E in Hela cells (green). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.
  • ICC staining CD3E in Lovo cells (green). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.
  • Immunohistochemical analysis of paraffin-embedded human tonsil tissue using anti-CD3E antibody. Counter stained with hematoxylin.
  • Immunohistochemical analysis of paraffin-embedded human kidney tissue using anti-CD3E antibody. Counter stained with hematoxylin.
  • Immunohistochemical analysis of paraffin-embedded mouse spleen tissue using anti-CD3E antibody. Counter stained with hematoxylin.
  • Flow cytometric analysis of Jurkat cells with CD3E antibody at 1/100 dilution (blue) compared with an unlabelled control (cells without incubation with primary antibody; red). Goat anti rabbit IgG (FITC) was used as the secondary antibody.

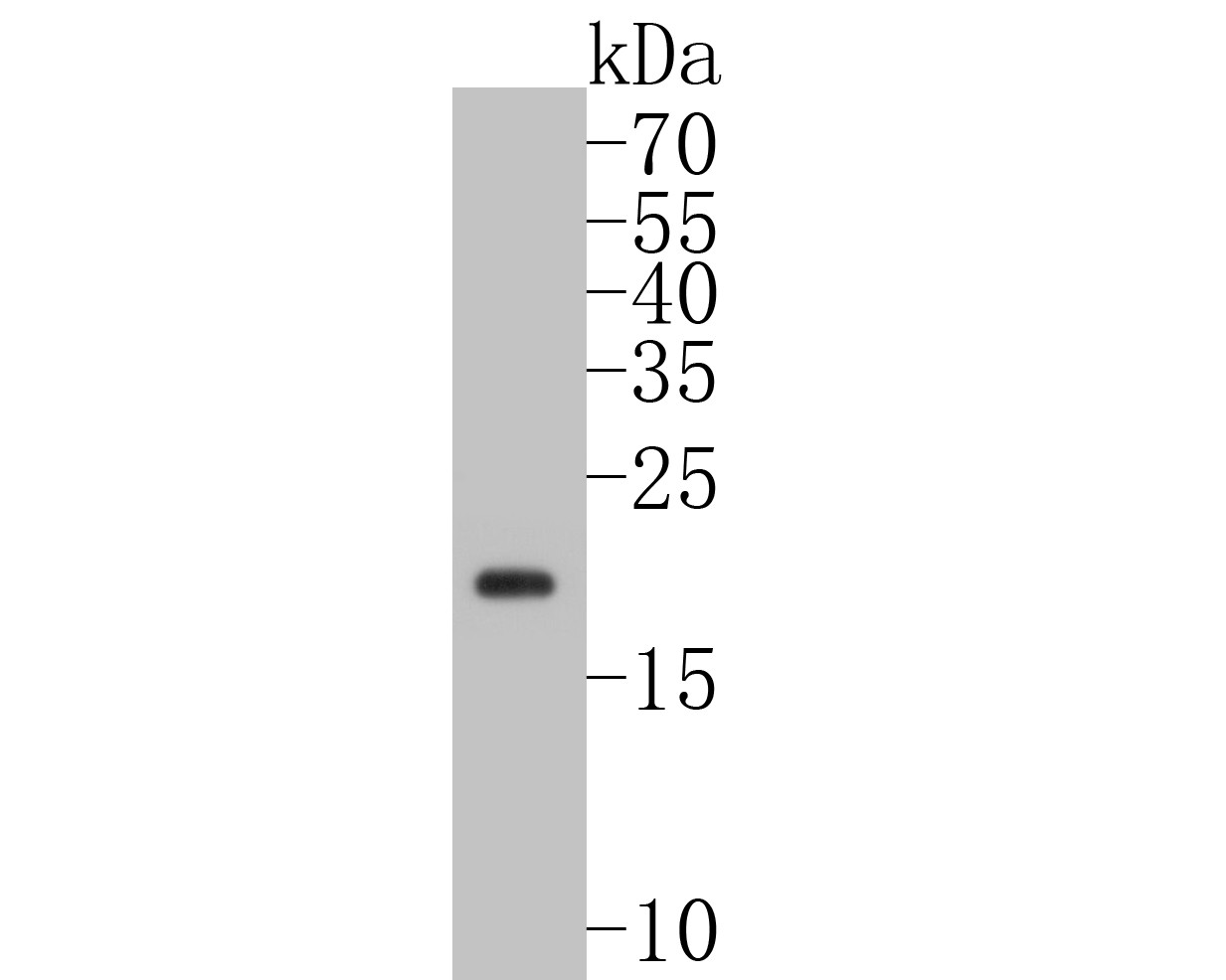

Western blot analysis of CD3E on different cell lysates using anti-CD3E antibody at 1/1000 dilution.

Applications

  • WB

  • ICC

  • IHC-P

  • FC

REACTIVITY

  • Human

  • Mouse

SPECIFICATIONS

Product Type

Rabbit polyclonal primary

Product Name

CD3 epsilon Antibody (ER80501)

Immunogen

This antibody is produced by immunizing rabbits with a synthetic peptide (klh-coupled) corresponding to n-terminal residues of cd3 epsilon.

Host

Rabbit

Positive Control

Hela, Jurkat, LOVO, human thymus tissue, human tonsil tissue, human kidney tissue, mouse spleen tissue

Conjugation

Unconjugated

Clonality

Polyclonal

PROPERTIES

Form

Liquid

Storage Condition

Store at +4C after thawing. Aliquot store at -20C. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*PBS (pH7.4), 0.2% BSA, 40% Glycerol. Preservative: 0.05% Sodium Azide.

Concentration

1 ug/ul

PURIFICATION

Peptide affinity purified

MOLECULAR WEIGHT

23 kDa

Isotype

IgG

APPLICATION DILUTION

  • WB

  • 1:1,000

  • ICC

  • 1:200

  • IHC-P

  • 1:200

  • FC

  • 1:100-1:200

TARGET

UNIPROT #

PROTEIN NAME

T-cell surface glycoprotein CD3 epsilon chain

GENE NAME

CD3E

SYNONYMS

CD3E

POST-TRANSLATIONAL MODIFICATION

Phosphorylated on Tyr residues after T-cell receptor triggering by LCK in association with CD4/CD8.

SUBCELLULAR LOCATION

Cell membrane; Single-pass type I membrane protein.

FUNCTION

Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways. In addition of this role of signal transduction in T-cell activation, CD3E plays an essential role in correct T-cell development. Initiates the TCR-CD3 complex assembly by forming the two heterodimers CD3D/CD3E and CD3G/CD3E. Participates also in internalization and cell surface down-regulation of TCR-CD3 complexes via endocytosis sequences present in CD3E cytosolic region.
