PRODUCT CODE: ER1901-39

BIN1 Antibody (ER1901-39)

Applications

  • WB

  • ICC

  • IHC-P

REACTIVITY

  • Human

  • Mouse

  • Rat

-
+

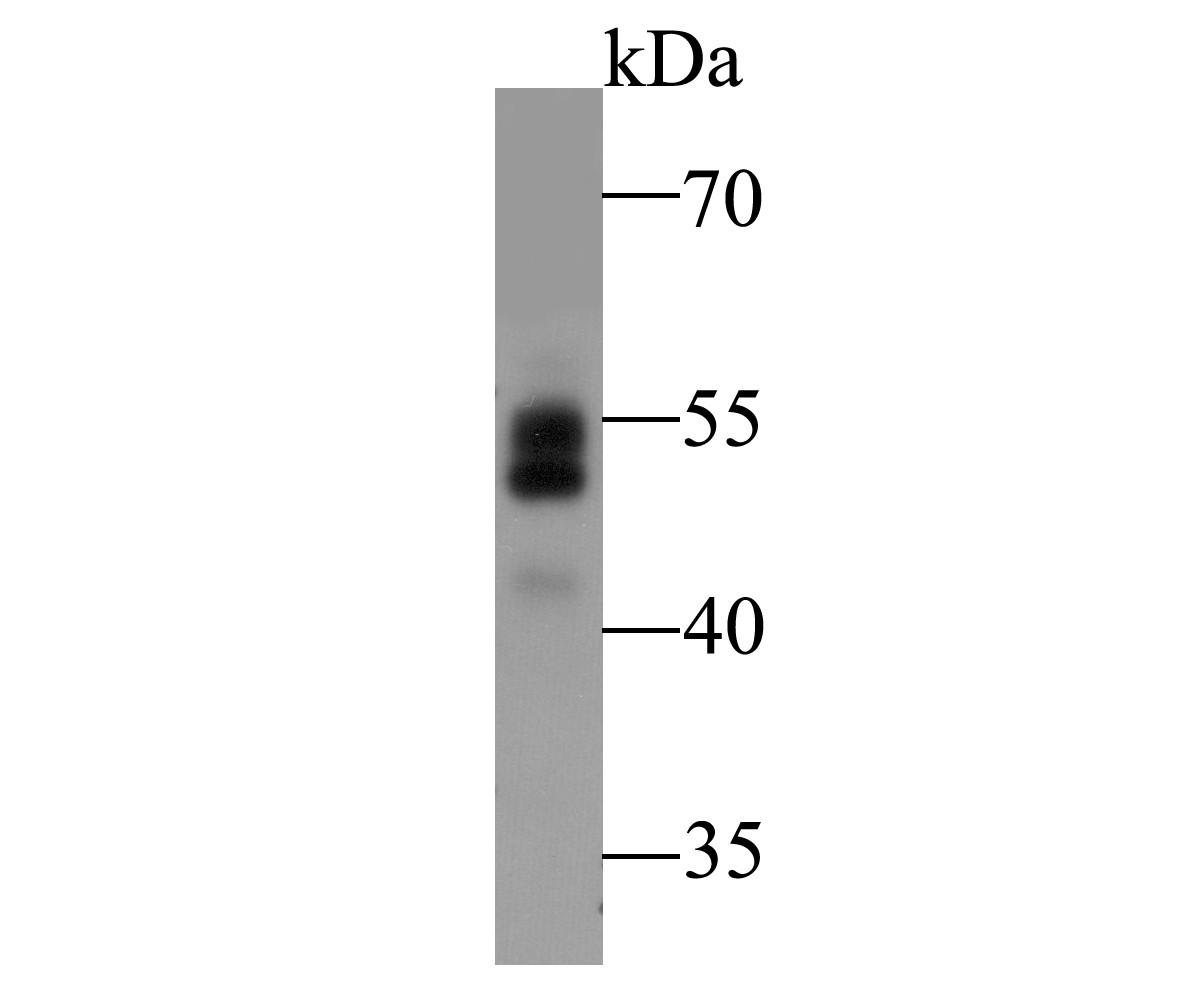

Western blot analysis of BIN1 on rat spleen tissue lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-39, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
  • Western blot analysis of BIN1 on rat spleen tissue lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-39, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.
  • ICC staining of BIN1 in SiHa cells (green). Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with the primary antibody (ER1901-39, 1/50) for 1 hour at room temperature, washed with PBS. Alexa Fluor®488 Goat anti-Rabbit IgG was used as the secondary antibody at 1/100 dilution. The nuclear counter stain is DAPI (blue).
  • Immunohistochemical analysis of paraffin-embedded rat brain tissue using anti-BIN1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1901-39, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human colon cancer tissue using anti-BIN1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1901-39, 1/50) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human spleen tissue using anti-BIN1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1901-39, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded human kidney tissue using anti-BIN1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1901-39, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
  • Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue using anti-BIN1 antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 8.0-8.4) for 20 minutes.The tissues were blocked in 5% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (ER1901-39, 1/200) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Western blot analysis of BIN1 on rat spleen tissue lysate. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody (ER1901-39, 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:5,000 dilution was used for 1 hour at room temperature.

Applications

  • WB

  • ICC

  • IHC-P

REACTIVITY

  • Human

  • Mouse

  • Rat

SPECIFICATIONS

Product Type

Rabbit polyclonal primary

Product Name

BIN1 Antibody (ER1901-39)

Immunogen

Recombinant protein within human bin1 aa 56-257.

Host

Rabbit

Positive Control

Rat spleen tissue, SiHa, rat brain tissue, human colon cancer tissue, human spleen tissue, human kidney tissue, mouse skeletal muscle tissue.

Conjugation

Unconjugated

Clonality

Polyclonal

PROPERTIES

Form

Liquid

Storage Condition

Store at +4C after thawing. Aliquot store at -20C. Avoid repeated freeze / thaw cycles.

Storage Buffer

1*PBS (pH7.4), 0.2% BSA, 50% Glycerol. Preservative: 0.05% Sodium Azide.

Concentration

1 ug/ul

PURIFICATION

Protein affinity purified.

MOLECULAR WEIGHT

55 kDa

Isotype

IgG

APPLICATION DILUTION

  • WB:1:500-1:1000

  • ICC:1:50-1:200

  • IHC-P:1:50-1:200

TARGET

UNIPROT #

PROTEIN NAME

BIN1

SYNONYMS

AMPH 2 antibody; AMPH2 antibody; Amphiphysin 2 antibody; Amphiphysin II antibody; Amphiphysin like protein antibody; amphiphysin-like antibody; Amphiphysin-like protein antibody; AMPHL antibody; Bin1 antibody; BIN1_HUMAN antibody; Box Dependant MYC Interacting Protein 1 antibody; Box-dependent myc-interacting protein 1 antibody; Bridging integrator 1 antibody; DKFZp547F068 antibody; MGC10367 antibody; MGC105358 antibody; Myc box dependent interacting protein 1 antibody; Myc box-dependent-interacting protein 1 antibody; SH3P9 antibody

TISSUE SPECIFICITY

Ubiquitous. Highest expression in the brain and muscle. Expressed in oligodendrocytes. Isoform IIA is expressed only in the brain, where it is detected in the gray matter, but not in the white matter. Isoform BIN1 is widely expressed with highest expression in skeletal muscle.

POST-TRANSLATIONAL MODIFICATION

Phosphorylated by protein kinase C.

SUBCELLULAR LOCATION

Endosome. Nucleus. Plasma membrane.

FUNCTION

Is a key player in the control of plasma membrane curvature, membrane shaping and membrane remodeling. Required in muscle cells for the formation of T-tubules, tubular invaginations of the plasma membrane that function in depolarization-contraction coupling. Is a negative regulator of endocytosis (By similarity). Is also involved in the regulation of intracellular vesicles sorting, modulation of BACE1 trafficking and the control of amyloid-beta production. In neuronal circuits, endocytosis regulation may influence the internalization of PHF-tau aggregates (By similarity). May be involved in the regulation of MYC activity and the control cell proliferation. Has actin bundling activity and stabilizes actin filaments against depolymerization in vitro.
